5.40
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

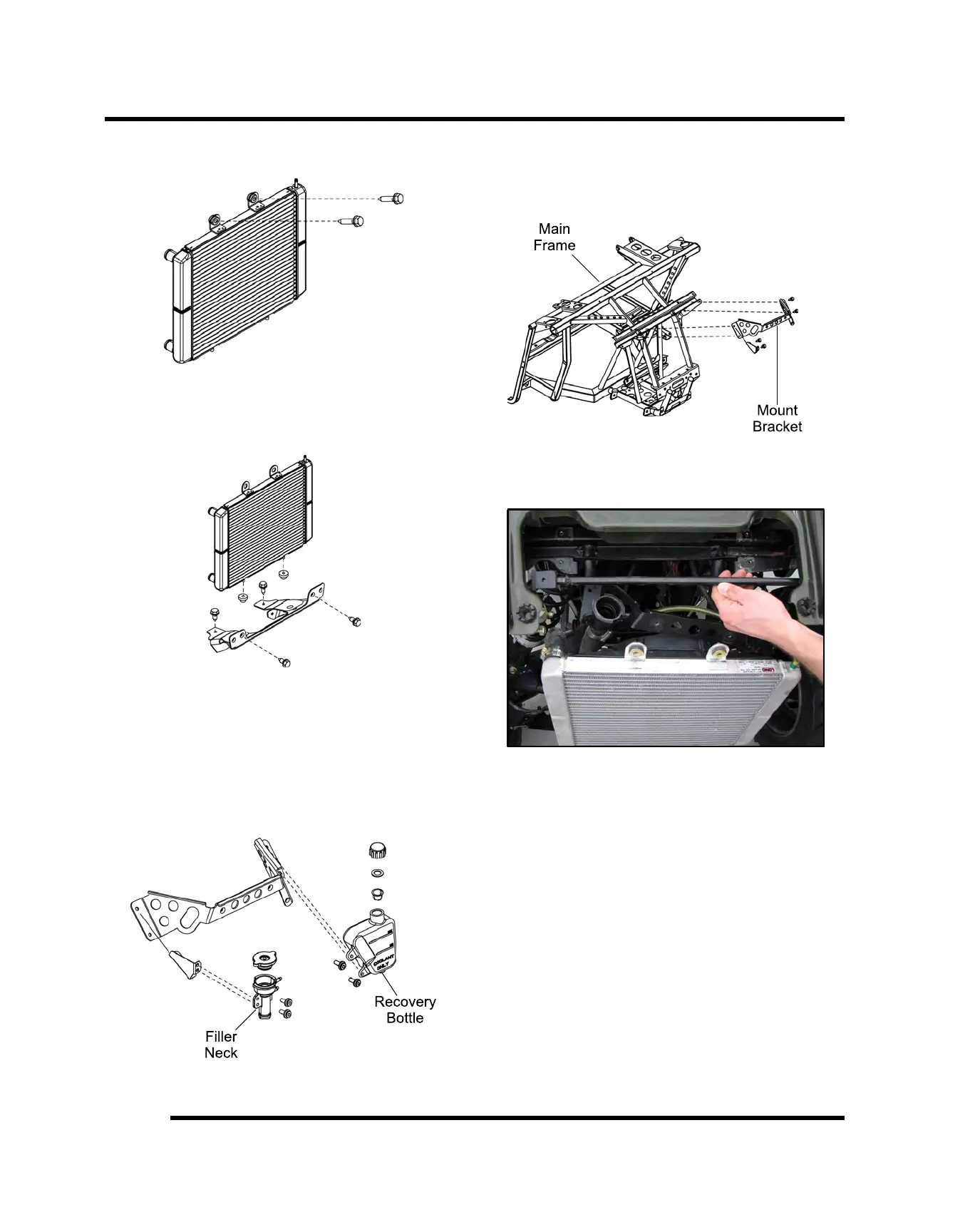

4. Remove the (2) upper radiator retaining bolts.
5. Remove the (4) bolts retaining the lower radiator
mount bracket and remove the bracket from the
frame.
6. Allow radiator to sag down to allow access to
recovery bottle retaining screws and filler neck
retaining screws.
7. Remove retaining screws from recovery bottle and
filler neck. Allow the recovery bottle and filler neck to
hang down to access the (4) bolts retaining the upper
radiator mount bracket.
8. Remove the (4) bolts retaining the upper radiator
mount bracket and remove the bracket from the
frame.
9. Lift up on the stabilizer bar and remove it from the
vehicle.
10. Inspect the stabilizer bar for straightness. Inspect the
bushings and replace if needed.
11. Reverse the procedure for installation. Torque the
linkage fasteners to specification (see “Exploded
View”).
BODY / STEERING / SUSPENSION
