5
5.79
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

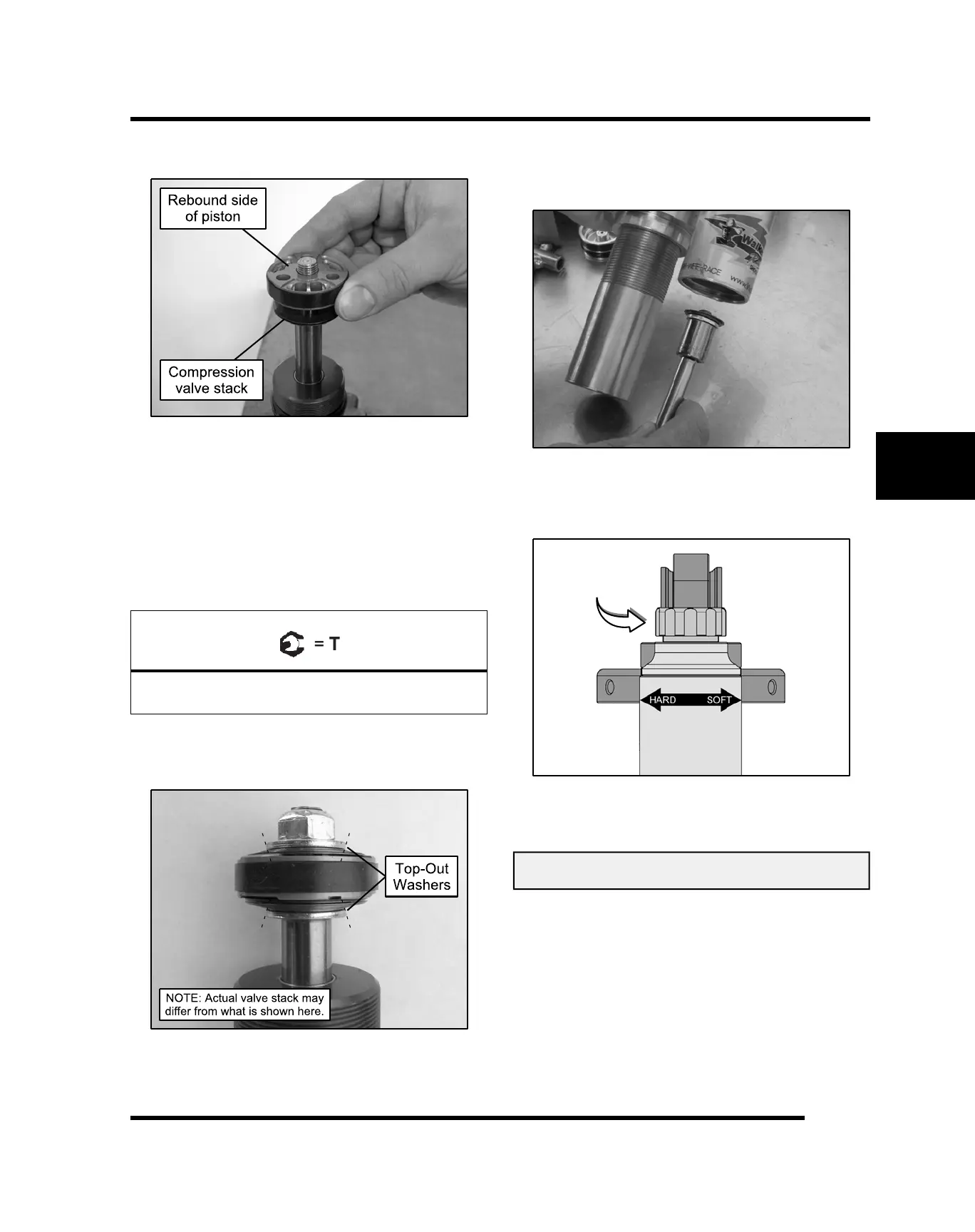

7. Place valve piston on top of the compression stack.
IMPORTANT: If unsure of the valve stack order,
refer to “Shock Valving” under the “Shock
Service Information” provided earlier in this
section.
8. Place a new lock nut onto the shock rod. Torque the
new lock nut to specification.
IMPORTANT: Do not over torque the nut or
damage to the valve stack can occur.
Lock Nut:
14 ft-lbs (19 Nm)
NOTE: Make sure “Top-Out” washers are
orientated as shown.
9. Assemble the clicker valve stack on top of the
fastener and install the assembly into the reservoir
body. Tighten the valve stack fastener securely.
10. Turn the compression adjuster knob counter-
clockwise (soft) until it stops, so damping is in the full
open position.
11. Use the appropriate shock body holding tool to
properly secure the shock assembly into a vice for
service.
Shock Body Holding Tool: PU-50979
BODY / STEERING / SUSPENSION
