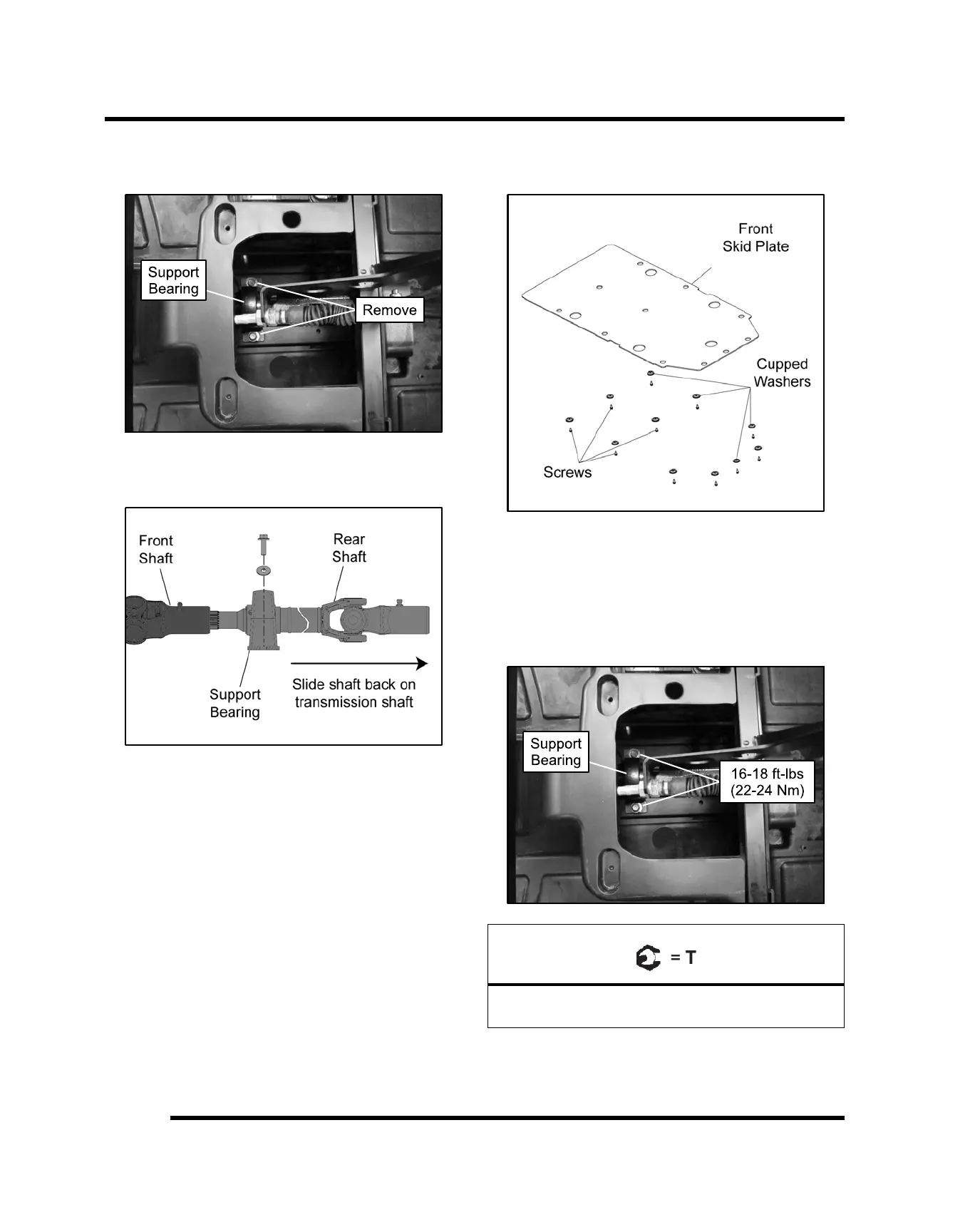

6. Remove the (2) bolts and washers retaining the
support bearing.
7. Slide the rear portion of the propshaft back to
separate it from the front portion.
8. Slide the front portion of the propshaft back and
away from the front gearcase to remove it.
9. If removing the rear portion of the propshaft, remove
the bearing support (upper & lower half) from the
shaft.
10. Remove the fasteners retaining the front plastic skid
plate to allow for propshaft removal.
11. Using care, slide the rear portion of the propshaft out
through the bottom of the vehicle.
12. Reverse this procedure to reinstall and assemble the
front and rear portions of the propshaft.
13. Torque the support bearing fasteners to
specification.
Support Bearing Fasteners:
16-18 ft-lbs (22-24 Nm)
IMPORTANT: When installing the front portion of
the propshaft, use a NEW roll pin.
