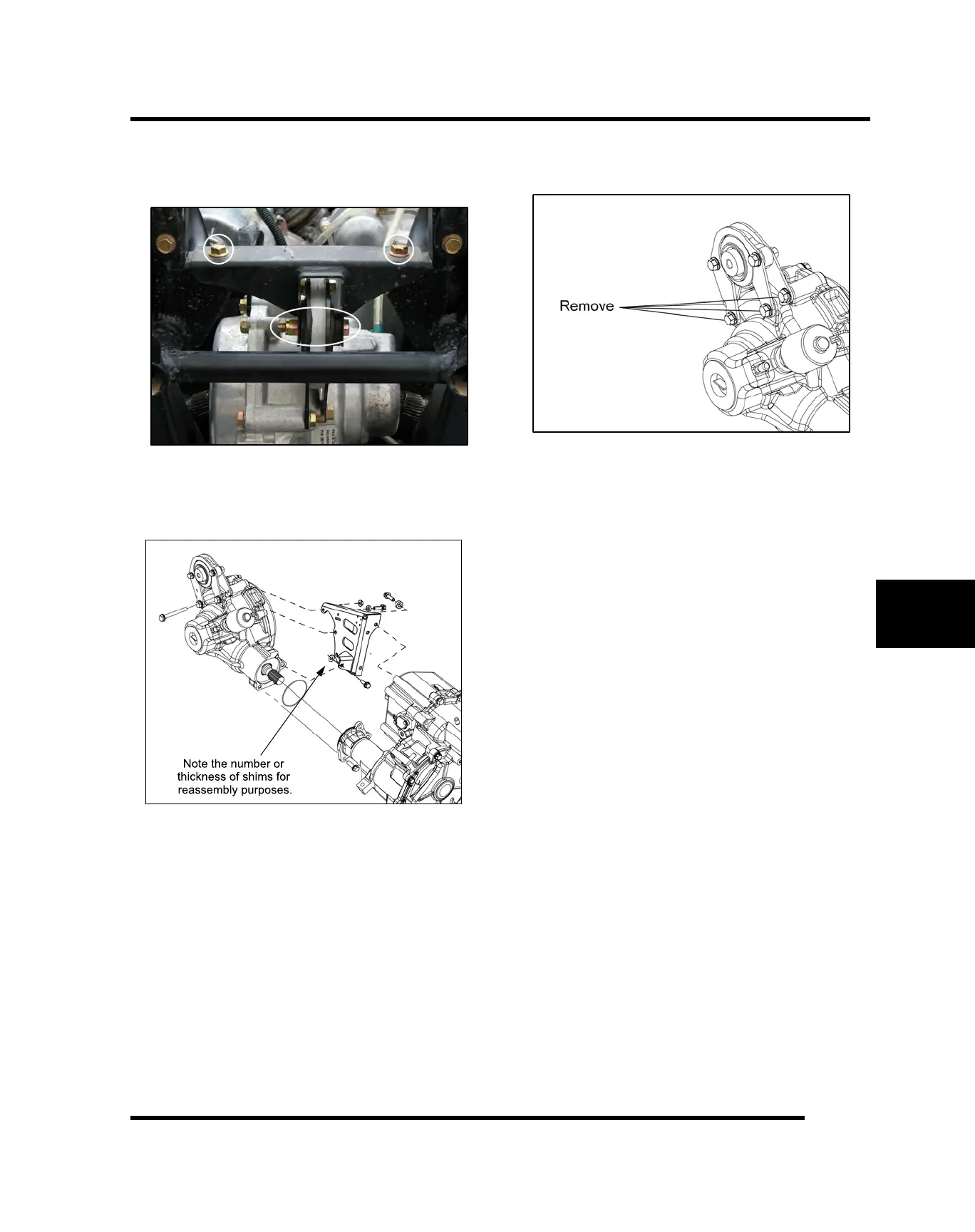

4. Remove the (2) rear gearcase mount bracket
fasteners and mount bolt and remove bracket from
vehicle.
5. Disconnect the differential solenoid 2-wire harness.
6. Remove the fasteners and bracket that secure the
rear gearcase to the transmission.
7. Remove the (4) fasteners and remove the rear
mount from the rear gearcase.
8. Pull the rear gearcase towards the rear of the vehicle
to disengage it from the transmission.
NOTE: If the splined coupler doesn’t slide off the
input shaft on the rear gearcase, use a
screwdriver to hold back the coupler while
pulling the rear gearcase back further to
disengage it.
9. Remove the vent line and lift the rear gearcase
upward and on its side to remove it from the vehicle.
FINAL DRIVE
