9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

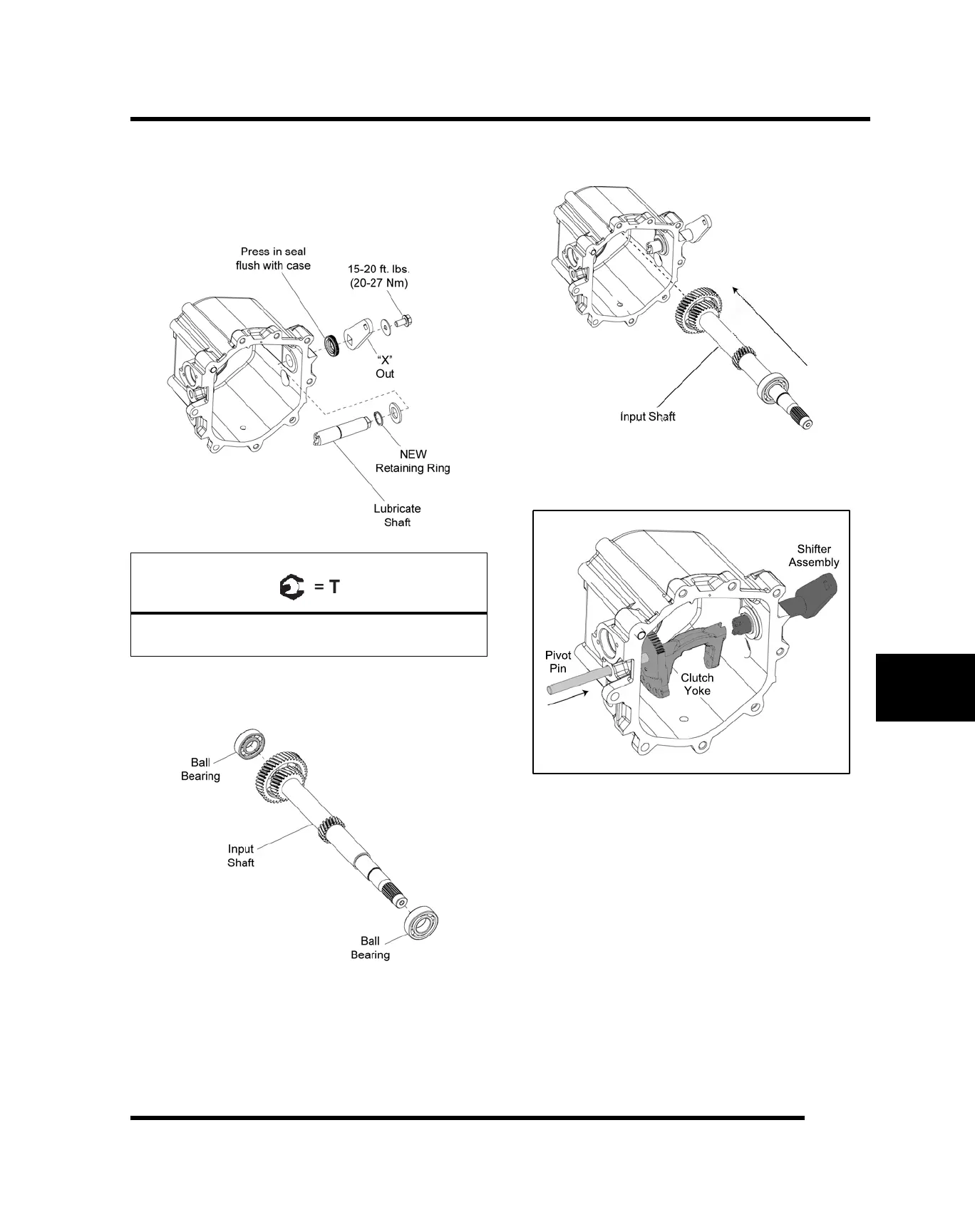

2. Lubricate the shaft of the shifter assembly and install
the assembly into the housing with a new retaining
ring and washer. Install the shift cable lever (“X”
facing out) and torque the retaining screw to
specification.
Shift Cable Lever Screw:
15-20 ft-lbs (20 - 27 Nm)
3. Assemble the input shaft with new ball bearings (if
required).
NOTE: Install new bearings and seals by
pressing on the inner race only.
4. Install the input shaft assembly into the transmission
housing.
5. Install the clutch yoke into the shifter assembly. Align
the holes and install clutch yoke pivot pin.
TRANSMISSION
To Next Page
