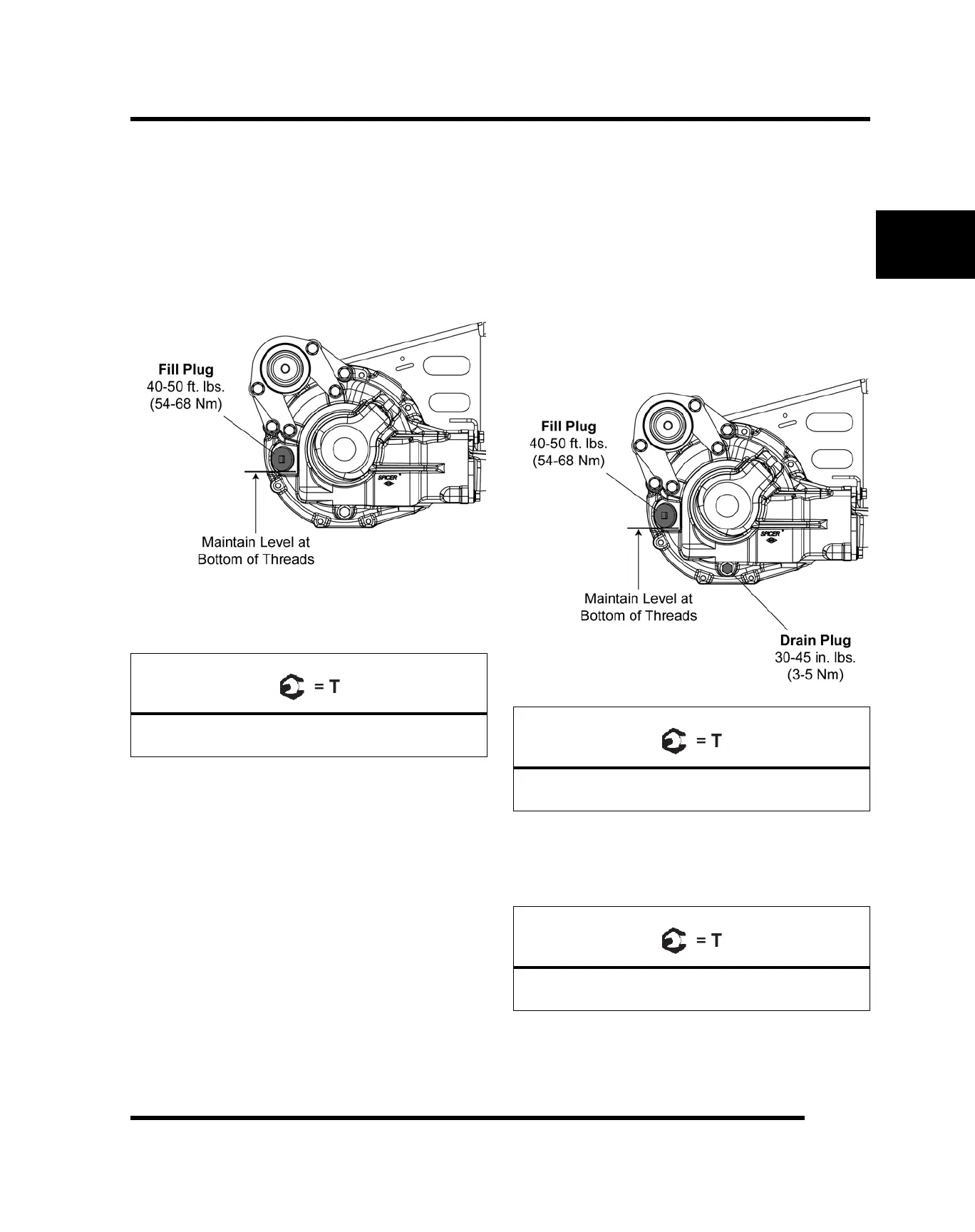

Lubricant Level Check:
The fill plug is located on the right side of the rear
gearcase. Maintain the fluid level even with the bottom of
the threads of the fill plug hole.
1. Position the vehicle on a level surface.
2. Remove the fill plug and check the fluid level. The
lubricant level should be even with the bottom of the
threads of the fill plug hole.
3. Add the recommended lubricant as needed.
4. Reinstall the fill plug and torque to specification.
Fill Plug:
40-50 ft-lbs (54-68 Nm)
Lubricant Change:
The drain plug is located on the bottom right side of the
rear gearcase.
1. Remove the fill plug.
2. Place a drain pan under the drain plug.
3. Remove the drain plug and allow the lubricant to
drain completely.
4. Clean the drain plug.
5. Reinstall the drain plug with new O-ring and torque to
specification.
Drain Plug:
30-45 in-lbs (3-5 Nm)
6. Add the recommended lubricant. Maintain the fluid
level even with the bottom threads of the fill plug
hole.
7. Reinstall the fill plug and torque to specification.
Fill Plug:
40-50 ft-lbs (54-68 Nm)
8. Check for leaks. Dispose of used lubricant properly.
