Operator’s Manual LTV
®
Series ventilator Page C-11
p/n 10664, Rev. Y

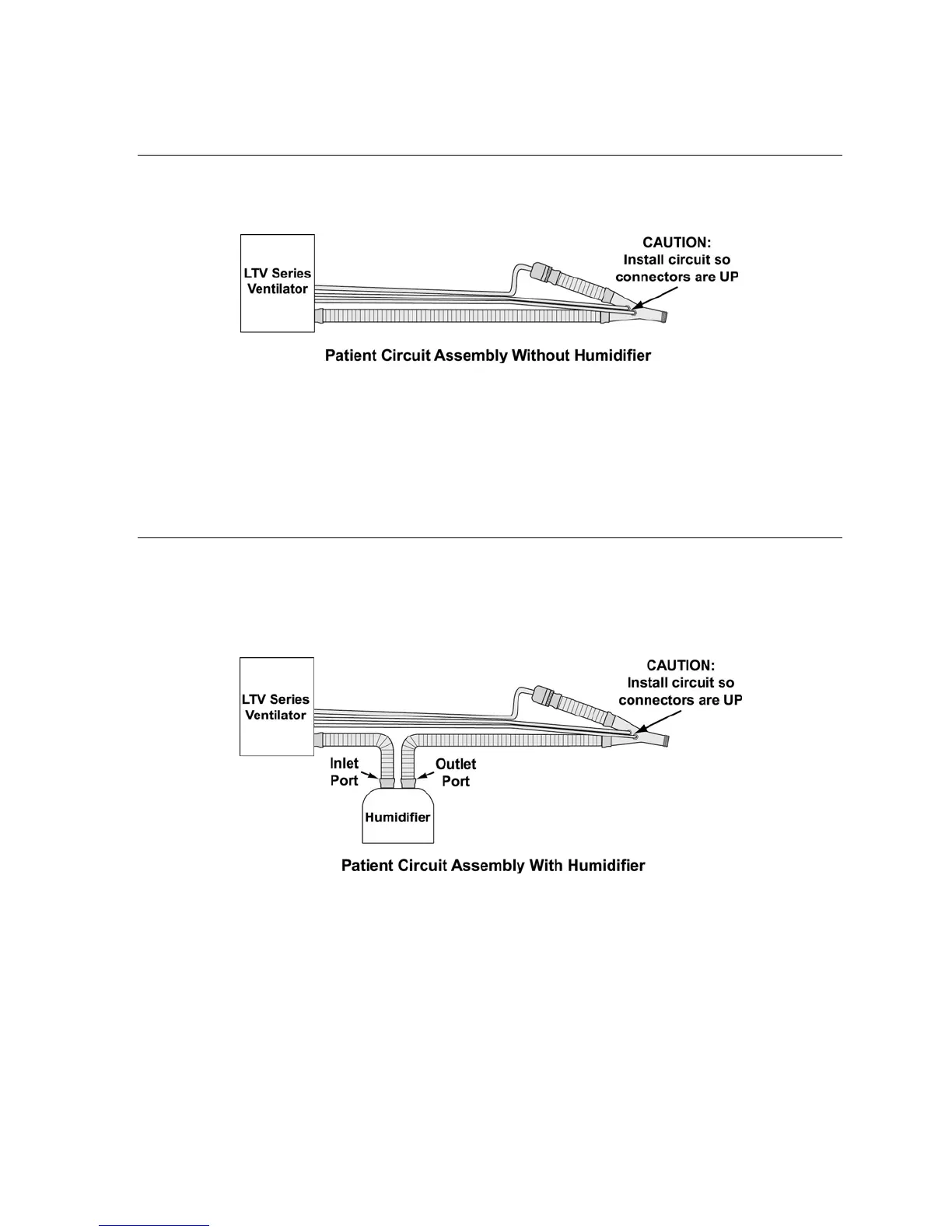

Ventilator without Humidifier
1) Connect the main breathing tube to the 22mm outlet port on the right side of the ventilator.
2) Connect the two exhalation flow transducer sense lines to the ports marked Flow Xdcer on the
right side of the ventilator. These are non-interchangeable Luer fittings.
3) Connect the exhalation valve drive line to the port marked Exhl Valve on the right side of the
ventilator.
Ventilator with Humidifier
1) Attach the main breathing tube to the outlet port on the humidifier.
2) Connect the humidifier circuit tube (not included in reusable circuit configurations) to the 22mm
outlet port on the right side of the ventilator and to the inlet port of the humidifier.
3) Connect the two exhalation flow transducer sense lines to the ports marked Flow Xdcer on the
right side of the ventilator. These are non-interchangeable luer fittings.
4) Connect the exhalation valve driveline to the port marked Exhl Valve on the right side of the
ventilator.
