Page C-10 LTV
®
Series ventilator Operator’s Manual
p/n 10664, Rev. Y

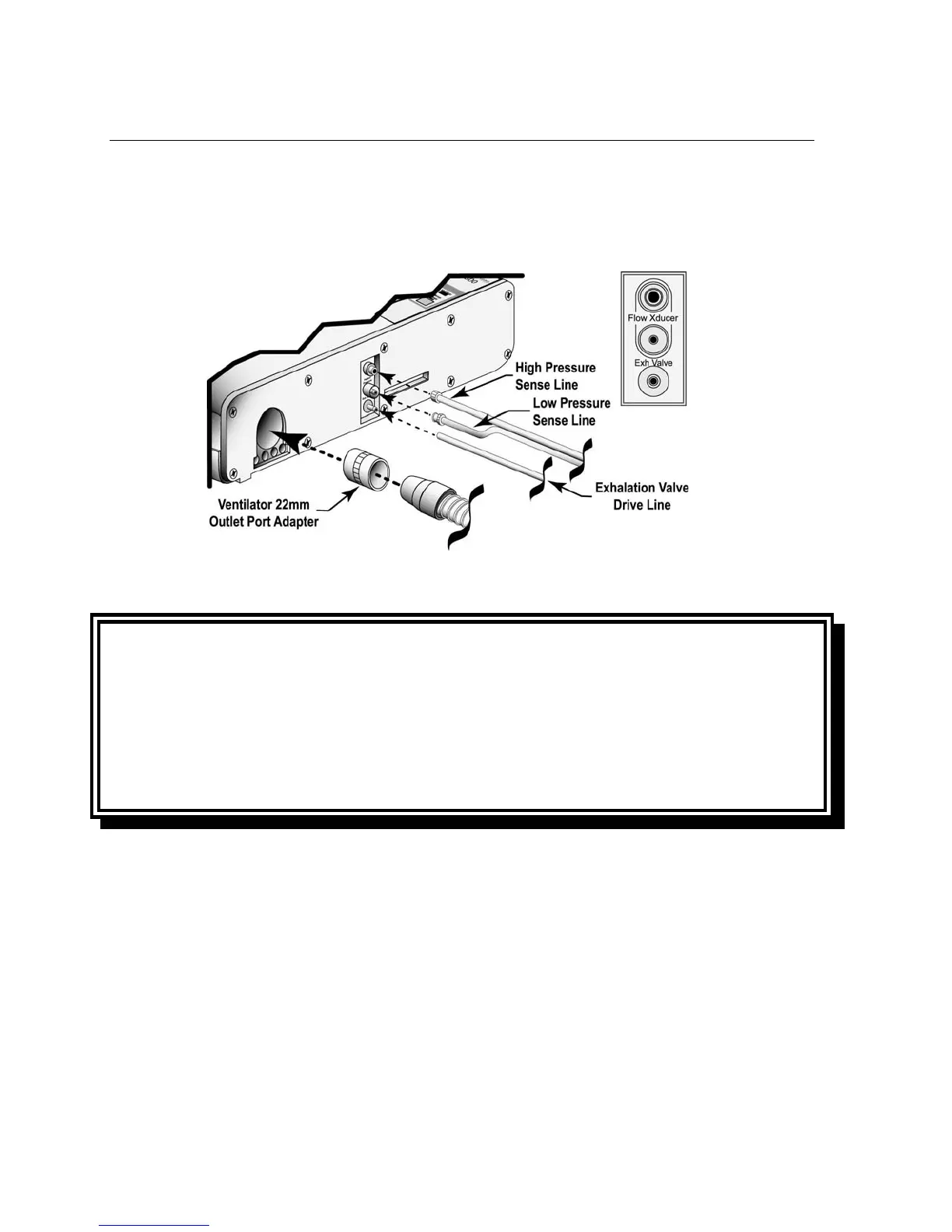

Patient Breathing Circuit – Connection Instructions
1) Connect the main breathing tube to the 22 mm outlet port on the right side of the ventilator.
2) Connect the two exhalation flow transducer sense lines to the ports marked Flow Xducer on the
right side of the ventilator. These are non-interchangeable Luer fittings.
3) Connect the exhalation valve drive line to the port marked Exh Valve on the right side of the
ventilator.
CAUTION
Patient Wye Installation – After cleaning, install the patient wye in the patient circuit so the proximal
sense lines are oriented up while operating.
ATTENTION
Installation de la soupape d'expiration - Après le nettoyage, installez la soupape d'expiration dans
le circuit du patient de sorte que les lignes de détection soient alignées vers le haut pendant
l’opération.
