Operator’s Manual LTV
®
Series ventilator Page C-13
p/n 10664, Rev. Y
For Operation from a High Pressure Oxygen Source (LTV
®
1000 only):

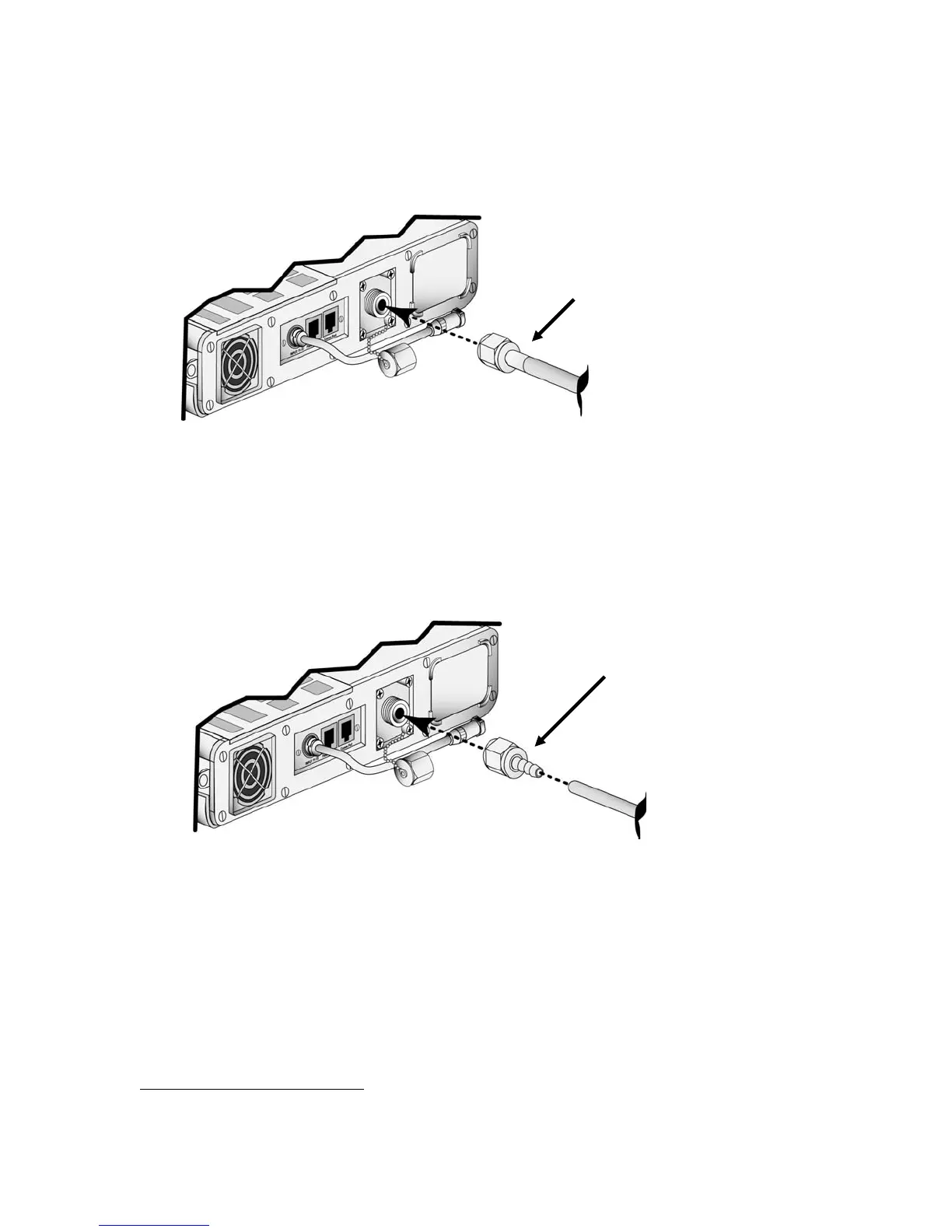

To operate from a high pressure (40 - 80 PSIG) oxygen source, connect an oxygen hose to the
female DISS
91
oxygen inlet fitting labeled O2 INLET on the left side of the ventilator.
For Operation from a Low Pressure Oxygen Source:
For operation from a low pressure oxygen source such as an oxygen concentrator, attach the low
pressure adapter to the inlet fitting labeled O2 INLET located on the left side of the ventilator. Then
attach the oxygen supply line to the hose barb on the adapter.
91
An NIST adapter for this connection P/N 10702 is available from Pulmonetic Systems upon request.
Low Pressure O2
adapter.
High pressure O2
hose
