Standards Compliance
5
5.2 European Standards
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 189

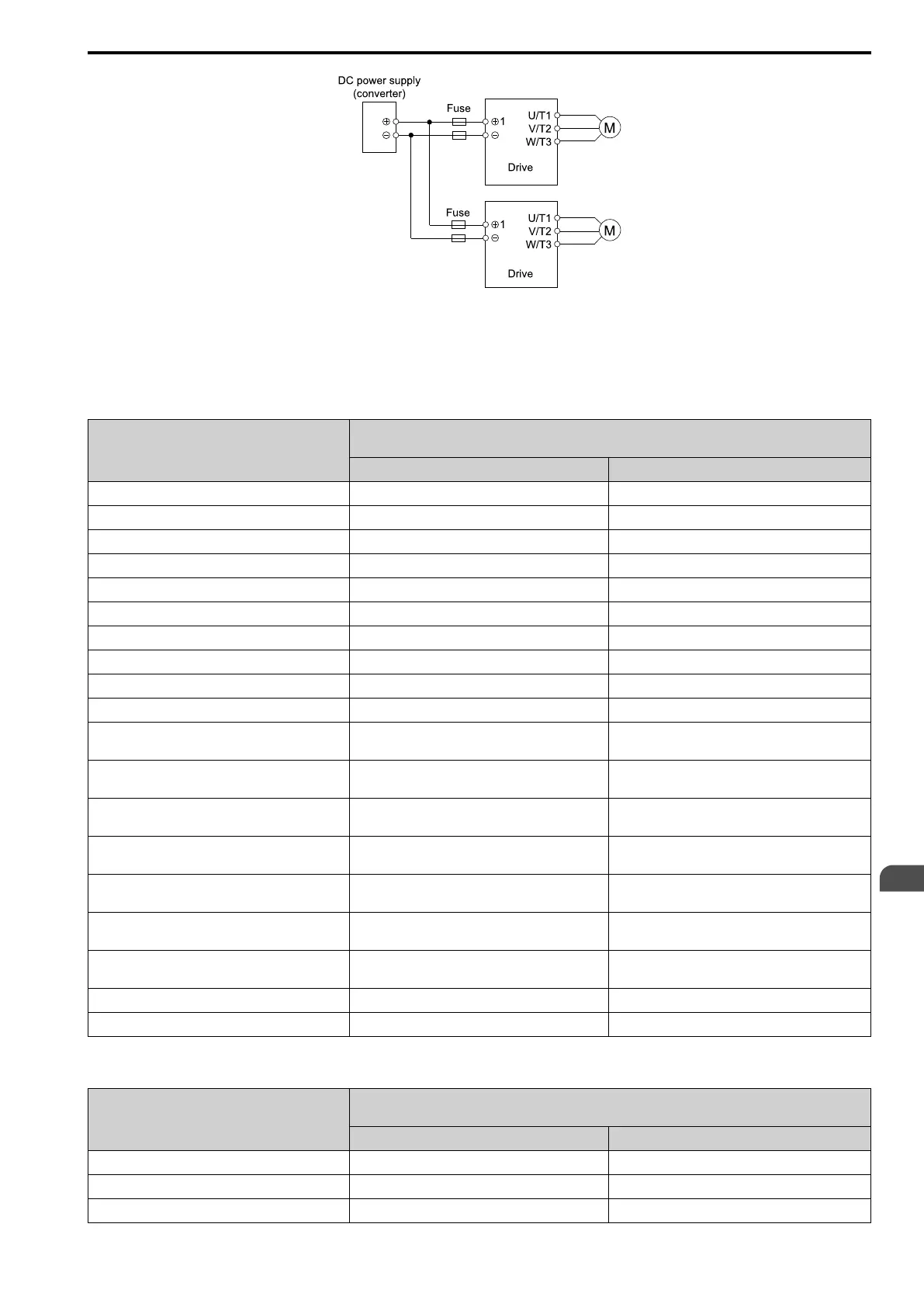

Figure 5.3 Wiring Example for DC Power Supply Input
WARNING! Do not ground the main circuit bus. Failure to obey can cause death or serious injury.
• Install a fuse for each drive when operating more than one drive. If one fuse blows, replace all fuses.
• Install the external filter (system) to comply with the EMC Directive.
Table 5.4 Recommended Fuse (Three-Phase 200 V Class)
Drive Model
Fuse
Manufacturer: Bussmann
Model Quantity
2004 FWH-45B 2
2006 FWH-45B 2
2010 FWH-45B 2
2012 FWH-50B 2
2018 FWH-80B 2
2021 FWH-80B 2
2030 FWH-125B 2
2042 FWH-150B 2
2056 FWH-200B 2
2070 FWH-250A 2
2082
FWH-250A
FWH-300A
*1
2
2110
FWH-250A
FWH-275A
*1
2
2138
FWH-300A
FWH-350A
*1
2
2169
FWH-350A
FWH-450A
*1
2
2211
FWH-450A
FWH-600A
*1
2
2257
FWH-600A
FWH-700A
*1
2
2313
FWH-800A
FWH-1000A
*1
2
2360 FWH-1000A 2
2415 FWH-1000A 2
*1 A fuse with a large rated current for applications with repeated loads is recommended.
Table 5.5 Recommended Fuse (Three-Phase 400 V Class)
Drive Model
Fuse
Manufacturer: Bussmann
Model Quantity
4002 FWH-50B 2
4004 FWH-50B 2
4005 FWH-50B 2
