10.8 Drive Exterior and Mounting Dimensions
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 387
■ 2056, 4031, 4038

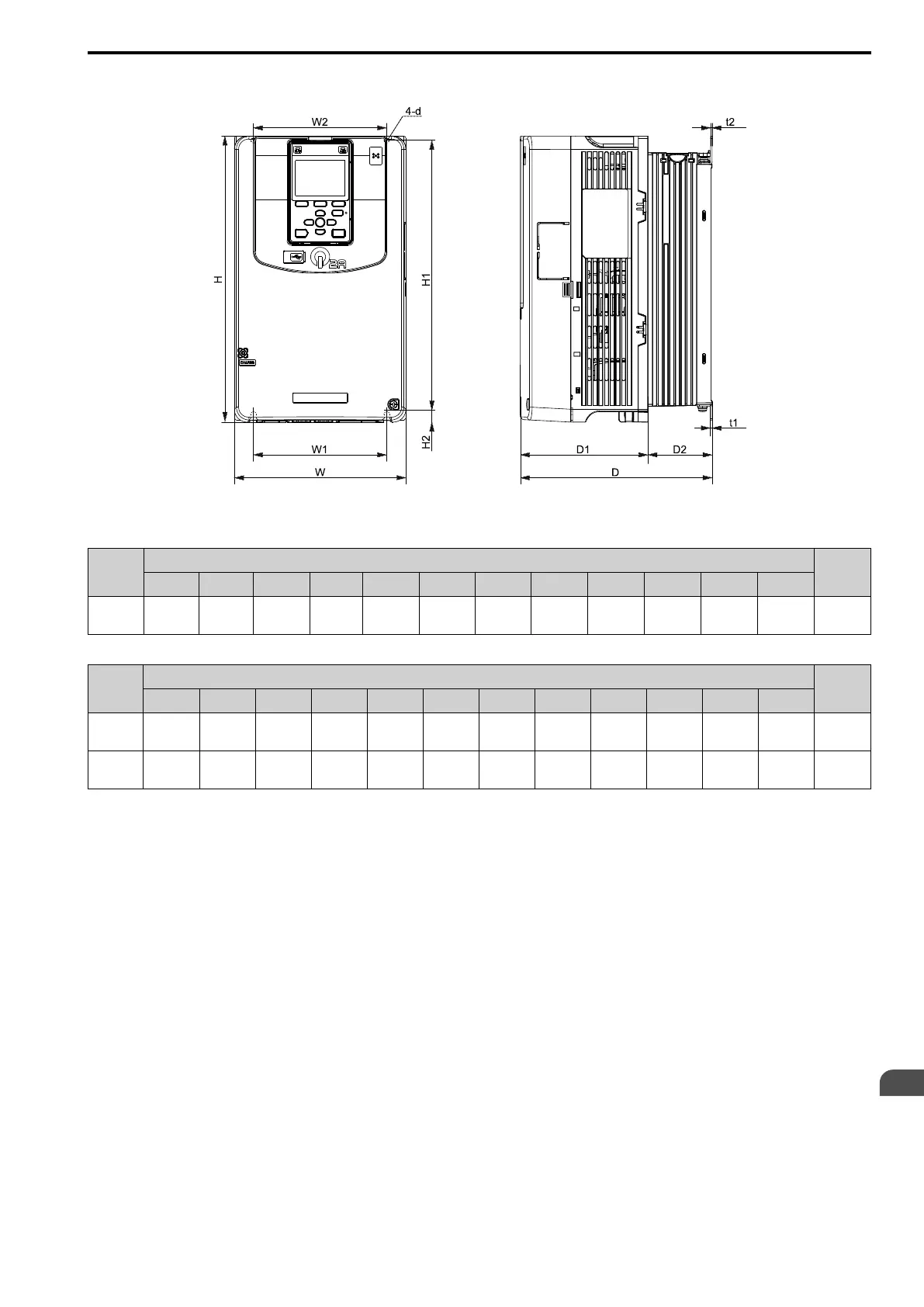

Figure 10.2 Exterior and Mounting Dimensions Diagram for 2056, 4031, 4038
Table 10.27 200 V class (IP20)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2 H1 H2 t1 t2 d
2056
180
(7.09)
300
(11.81)
202
(7.95)
134
(5.28)
68
(2.68)
140
(5.51)
140
(5.51)
284
(11.18)
8
(0.315)
1.6
(0.063)
1.6
(0.063)
M5
6
(13.23)
Table 10.28 400 V class (IP20)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2 H1 H2 t1 t2 d
4031
180
(7.09)
300
(11.81)
202
(7.95)
134
(5.28)
68
(2.68)
140
(5.51)
140
(5.51)
284
(11.18)
8
(0.315)
1.6
(0.063)
1.6
(0.063)
M5
5.5
(12.13)
4038
180
(7.09)
300
(11.81)
202
(7.95)
134
(5.28)
68
(2.68)
140
(5.51)
140
(5.51)
284
(11.18)
8
(0.315)
1.6
(0.063)
1.6
(0.063)
M5
5.5
(12.13)
