10.8 Drive Exterior and Mounting Dimensions
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 403
■ 4031, 4038

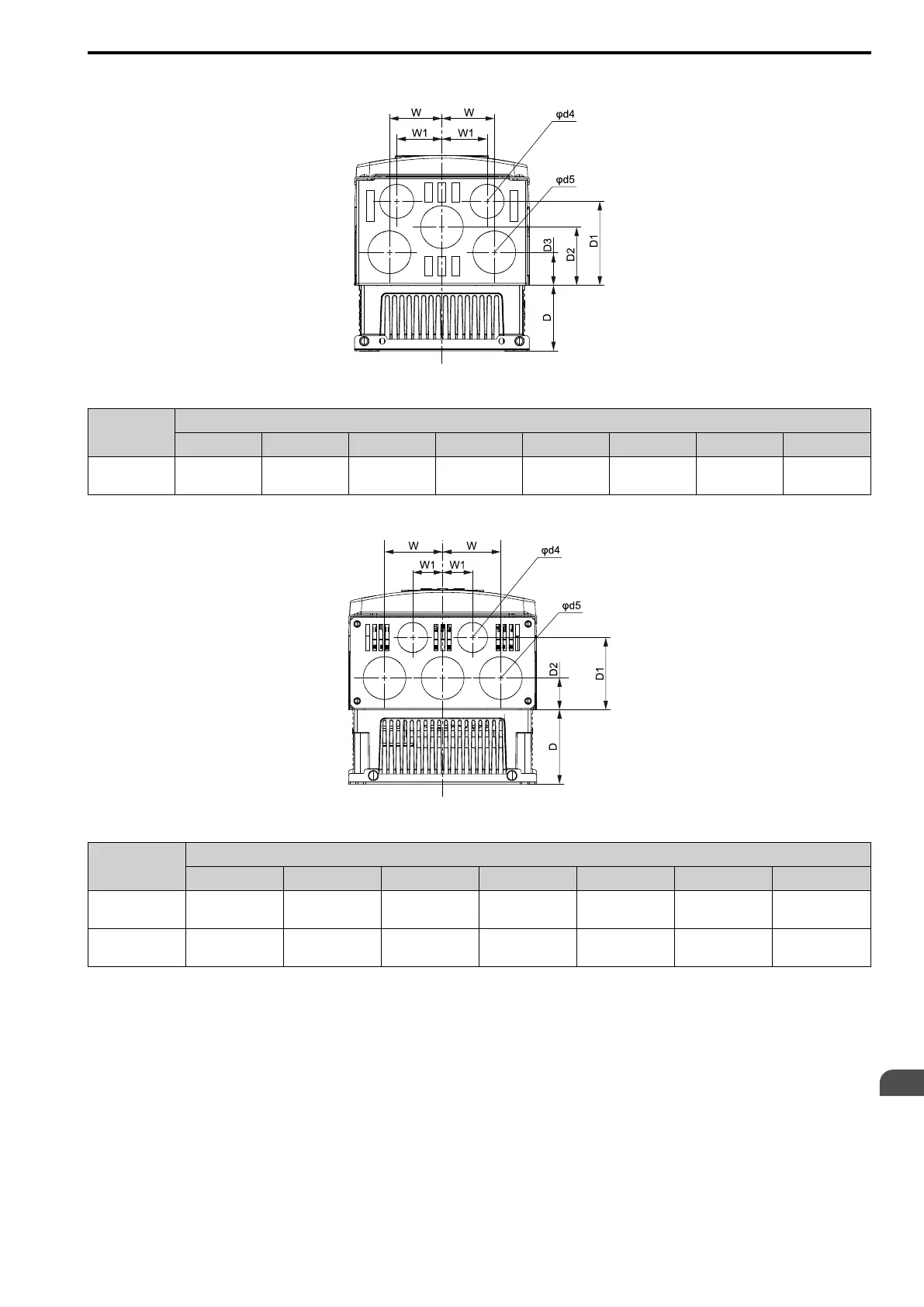

Figure 10.19 Knock-Out Dimensions Diagram 2 (Models: 4031, and 4038)
Model
Dimensions mm (in.)
D D1 D2 D3 W W1 φd4 φd5
4031, 4038
67.5
(2.66)
86.5
(3.41)
60
(2.36)
34
(1.34)
54
(2.13)
46.5
(1.83)
35
(1.38)
44
(1.73)
■ 4044, 4060
Figure 10.20 Knock-Out Dimensions Diagram 3 (Models: 4044, and 4060)
Model
Dimensions mm (in.)
D D1 D2 W W1 φd4 φd5
4044
87.2
(3.43)
84.3
(3.32)
36.8
(1.45)
68
(2.68)
35
(1.38)
35
(1.38)
50
(1.97)
4060
106.2
(4.18)
84.3
(3.32)
36.8
(1.45)
68
(2.68)
35
(1.38)
35
(1.38)
50
(1.97)
