10.8 Drive Exterior and Mounting Dimensions
404 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual
■ 4075

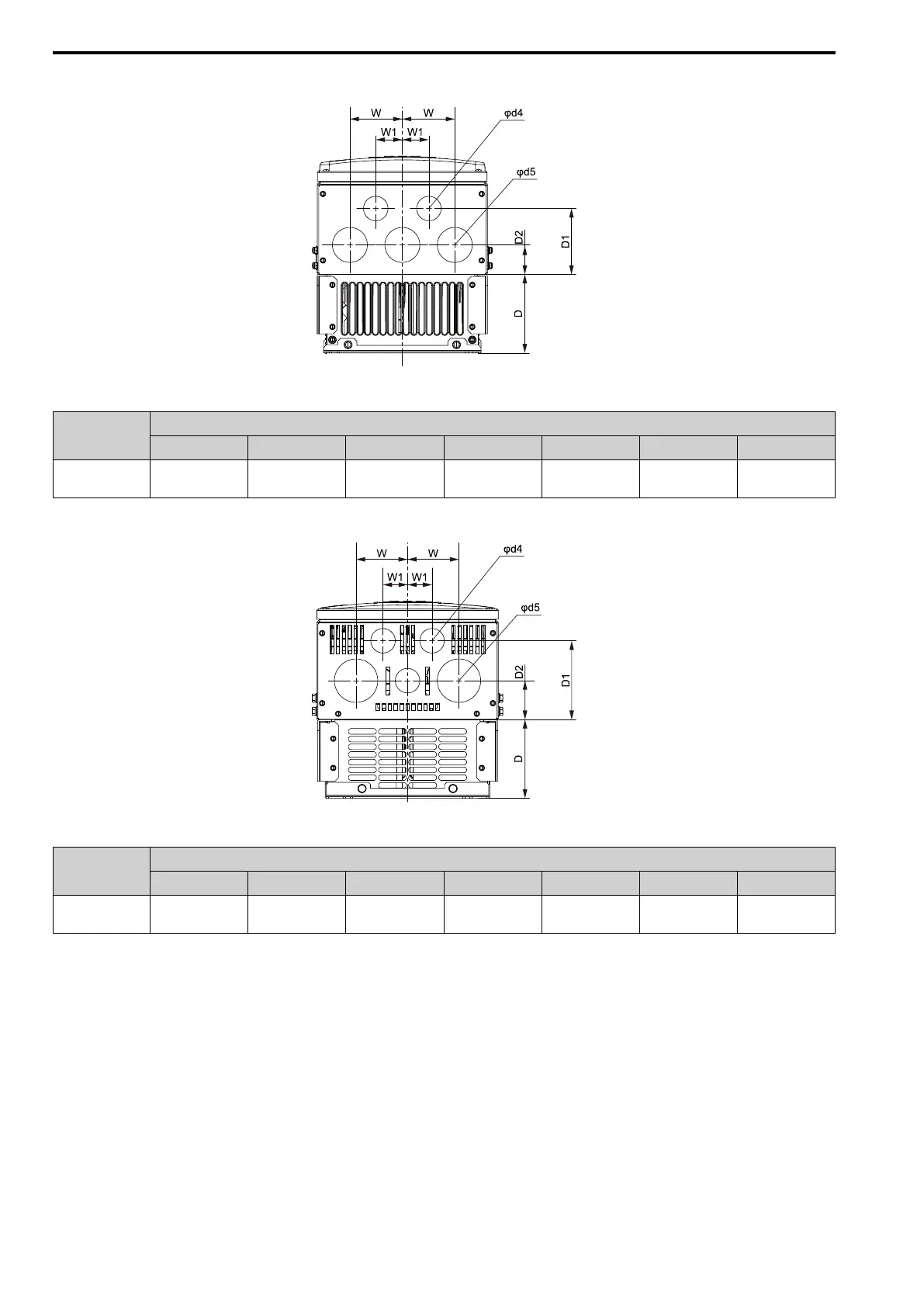

Figure 10.21 Knock-Out Dimensions Diagram 4 (Models: 4075)
Model
Dimensions mm (in.)
D D1 D2 W W1 φd4 φd5
4075
112.5
(4.43)
96
(3.78)
48.5
(1.91)
73
(2.87)
38
(1.50)
35
(1.38)
50
(1.97)
■ 4089, 4103
Figure 10.22 Knock-Out Dimensions Diagram 5 (Models: 4089, and 4103)
Model
Dimensions mm (in.)
D D1 D2 W W1 φd4 φd5
4089, 4103
112.4
(4.43)
112.8
(4.44)
55.8
(2.20)
73.5
(2.89)
35
(1.38)
35
(1.38)
62
(2.44)
