Specifications
10
10.8 Drive Exterior and Mounting Dimensions
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 405
■ 4140, 4168

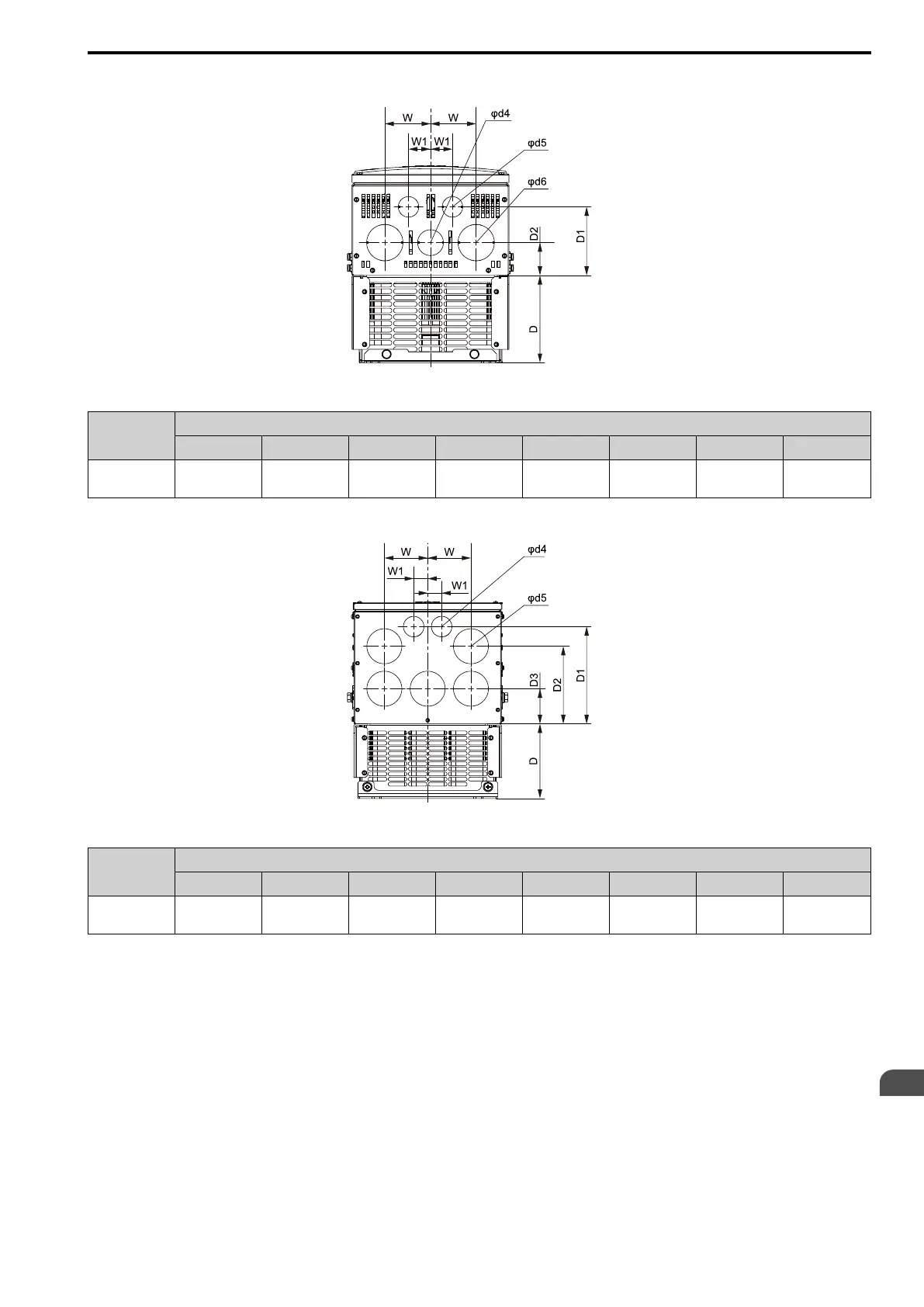

Figure 10.23 Knock-Out Dimensions Diagram 6 (Models: 4140, and 4168)
Model
Dimensions mm (in.)
D D1 D2 W W1 φd4 φd5 φd6
4140, 4168
149
(5.87)
117
(4.61)
56
(2.20)
78
(3.07)
37.5
(1.48)
44
(1.73)
35
(1.38)
62
(2.44)
■ 4208 to 4296
Figure 10.24 Knock-Out Dimensions Diagram 8 (Models: 4208, 4250, and 4296)
Model
Dimensions mm (in.)
D D1 D2 D3 W W1 φd4 φd5
4208, 4250, 4296
160
(6.30)
208.4
(8.20)
166.3
(6.55)
75.3
(2.96)
92.8
(3.65)
27.5
(1.08)
35
(1.38)
62
(2.44)
