Q2 Q2A User Manual

10.8 Drive Exterior and Mounting Dimensions
406 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual
■ 4371

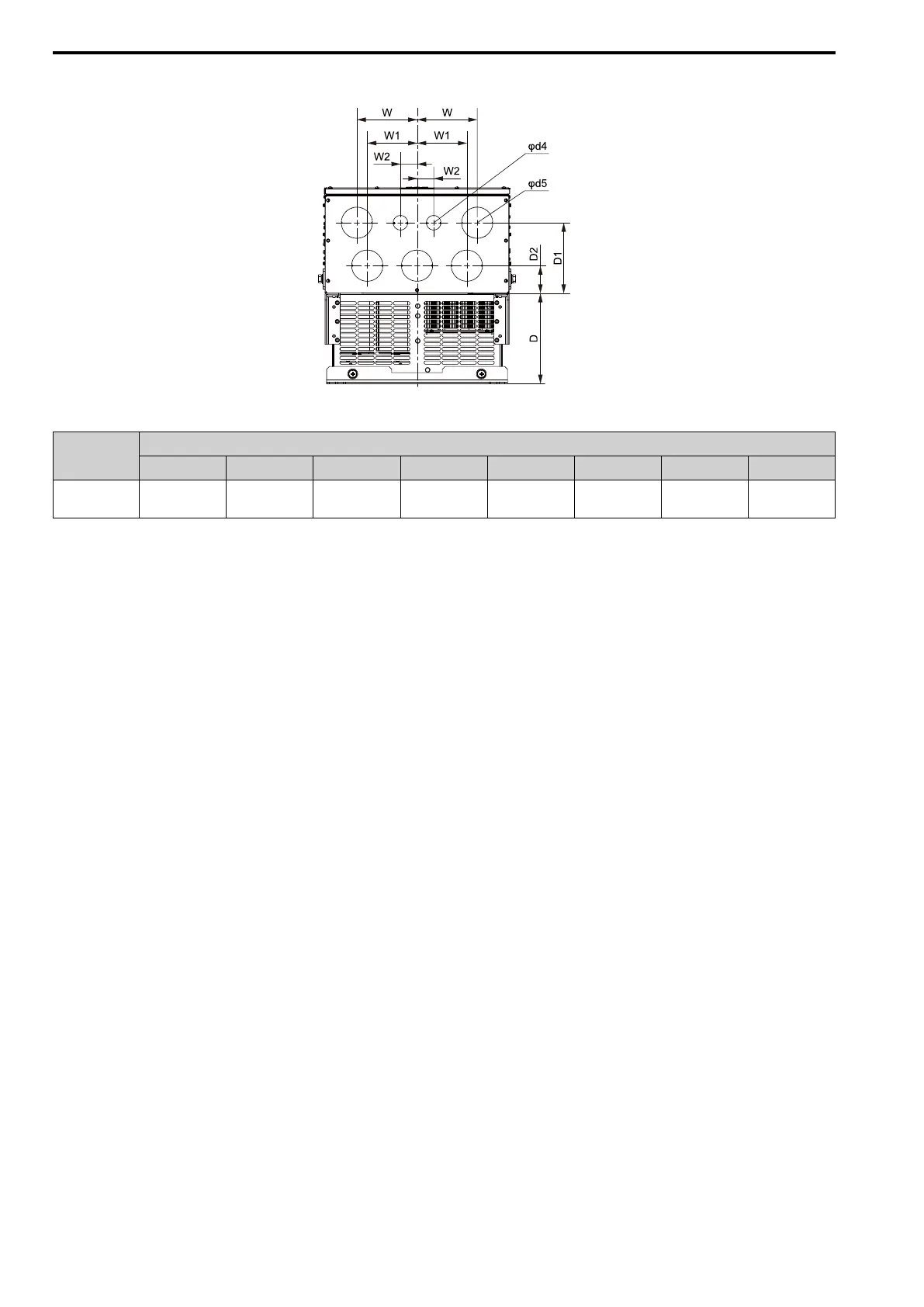

Figure 10.25 Knock-Out Dimensions Diagram 9 (Models: 4371)
Model
Dimensions mm (in.)
D D1 D2 W W1 W2 φd4 φd5
4371
218
(8.58)
170
(6.69)
66.6
(2.62)
145
(5.71)
40
(1.57)
120
(4.72)
35
(1.38)
75
(2.95)
