12.4 d: REFERENCE
610 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual
Related Parameters
MultSpd Ref1
H1-xx = A
MultSpd Ref2
H1-xx = B
MultSpd Ref3
H1-xx = C
MultSpd Ref4
H1-xx = D
Jog Reference
H1-xx = 6
Reference 13 (d1-13)
OFF OFF ON ON OFF
Reference 14 (d1-14)
ON OFF ON ON OFF
Reference 15 (d1-15)
OFF ON ON ON OFF
Reference 16 (d1-16)
ON ON ON ON OFF
Jog Reference (d1-17)
*1
- - - - ON
*1 Jog Reference (JOG command) is more important than all other frequency references.

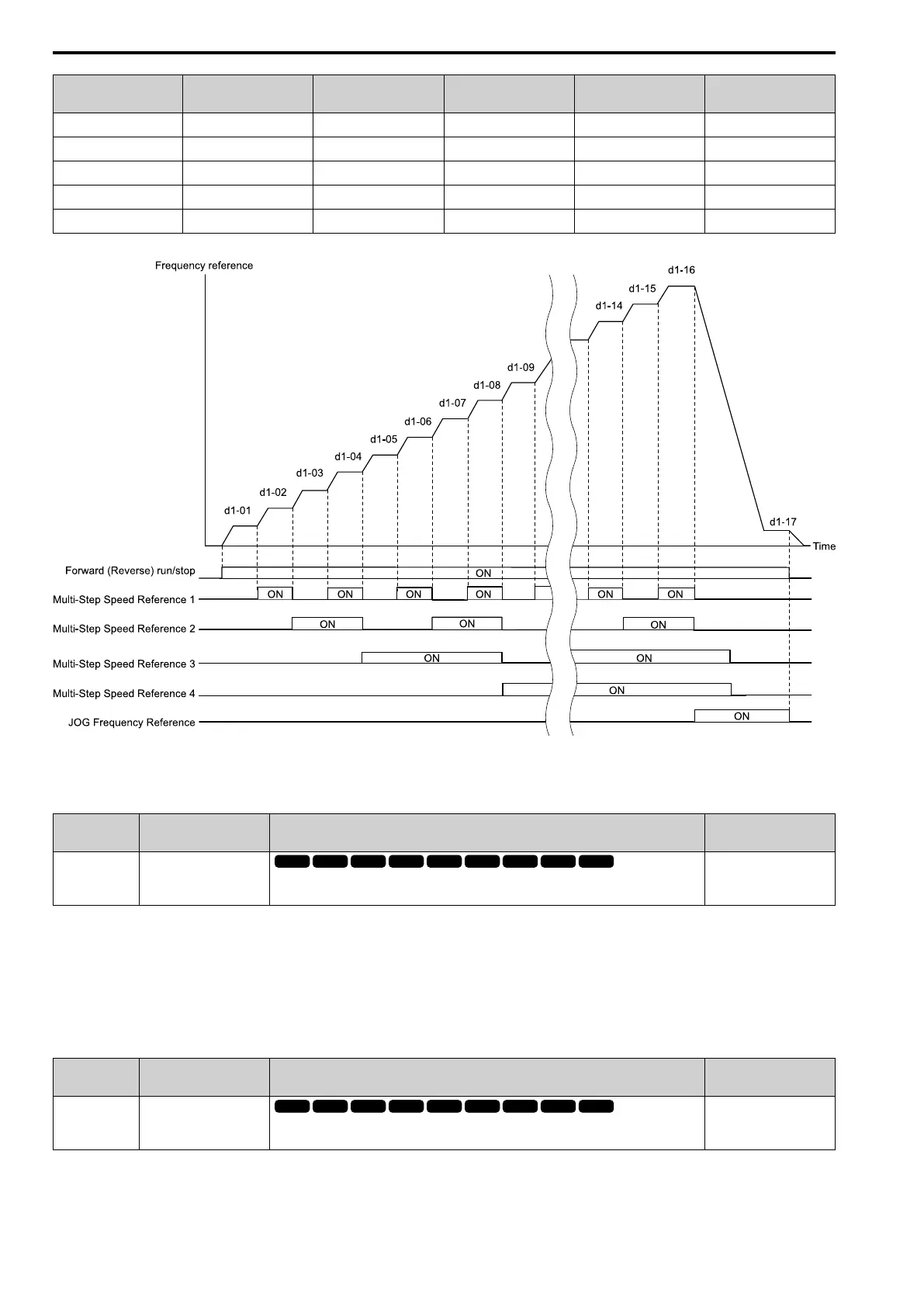

Figure 12.54 Time Chart for Multi-step Speed Reference/JOG Reference
■ d1-01 Reference 1
No.
(Hex.)
Name Description
Default
(Range)
d1-01
(0280)
RUN
Reference 1
Sets the frequency reference in the units from o1-03 [FrqDisplay Unit Selection].
0.00 Hz
(0.00 - 590.00 Hz)
Note:
• The upper limit value changes when the E1-04 [Max Output Frequency] and d2-01 [FRef Upper Limit] values change. Calculate the
upper limit value with this formula:
Upper limit value = (E1-04) × (d2-01) / 100
• When A1-02 = 6, 7 [Control Method = PM AOLVector, PM CLVector], the drive changes o1-03 = 1 [0.01% (100%=E1-04)].
• To set d1-01 to 1-step speed parameter in a multi-step speed operation, set b1-01 = 0 [Freq. Ref. Sel. 1 = Keypad].
■ d1-02 Reference 2
No.
(Hex.)
Name Description
Default
(Range)
d1-02
(0281)
RUN
Reference 2
Sets the frequency reference in the units from o1-03 [FrqDisplay Unit Selection].
0.00 Hz
(0.00 - 590.00 Hz)
