12.7 H: TERMINALS
SIEPYEUOQ2A01G AC Drive Q2A Technical Manual 697
Note:
Refer to “C1: ACCEL / DECEL” for more information.
■ 19: Ac/Dec Time2
Setting Function Description
19 Ac/Dec Time2
Set this function and H1-xx = 18 [Ac/Dec Time1] together. Sets the drive to use C1-05, C1-06 [Accel Time 3, Decel Time 3] or
C1-07, C1-08 [Accel Time 4, Decel Time 4].
Note:
Refer to “C1: ACCEL / DECEL” for more information.
■ 1A: Drive Enable
Setting Function Description
1A Drive Enable
Sets the function to show dnE [Drive Enabled] on the keypad and ignore Run commands when the terminal is OFF.
If you input the Run command before you turn ON the Drive Enable terminal, you must input the Run command
again to operate the drive. When the terminal set for Drive Enable is turned OFF when the drive is operating, the
drive will use the stopping method set in b1-03 [Stopping Method Selection] to stop the motor.
ON : Run command is accepted.
OFF : Run command is disabled. When the drive is running, it stops according to b1-03 setting.
■ 1B: Baseblock NO
Setting Function Description
1B Baseblock NO
Sets the command that stops drive output and coasts the motor to stop when the input is ON.
The keypad flashes bb [Baseblock]. If you cancel the baseblock command when the Run command is active, the
drive will restart the motor and use the speed search function.
WARNING! Sudden Movement Hazard. When you use the Baseblock command with hoist applications, make sure that you
close the holding brake when you input the Baseblock command and the drive shuts off its output. Failure to do obey can cause
death or serious injury if the load moves or falls when motor suddenly coasts after you input the Baseblock command.

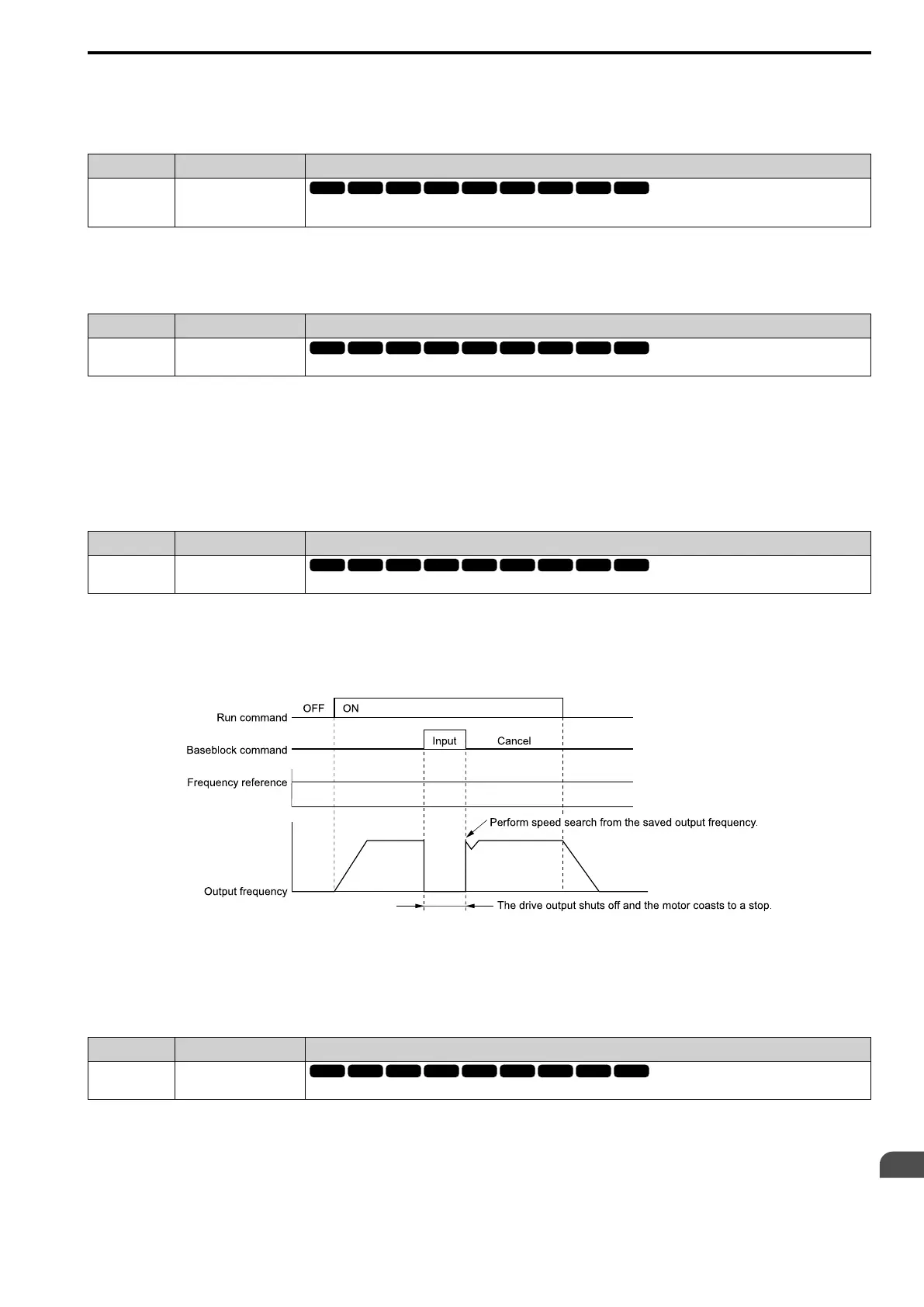

Figure 12.77 Baseblock Command Time Chart
ON : Baseblock (drive output stop)
OFF : Normal operation
■ 1E: Baseblock NC
Setting Function Description
1E Baseblock NC
Sets the command that stops drive output and coasts the motor to stop when the input terminal is OFF.
The keypad flashes bb [Baseblock]. If you cancel the baseblock command when the Run command is active, the
drive will restart the motor and use the speed search function.
ON : Normal operation
OFF : Baseblock (drive output stop)
To Next Page
