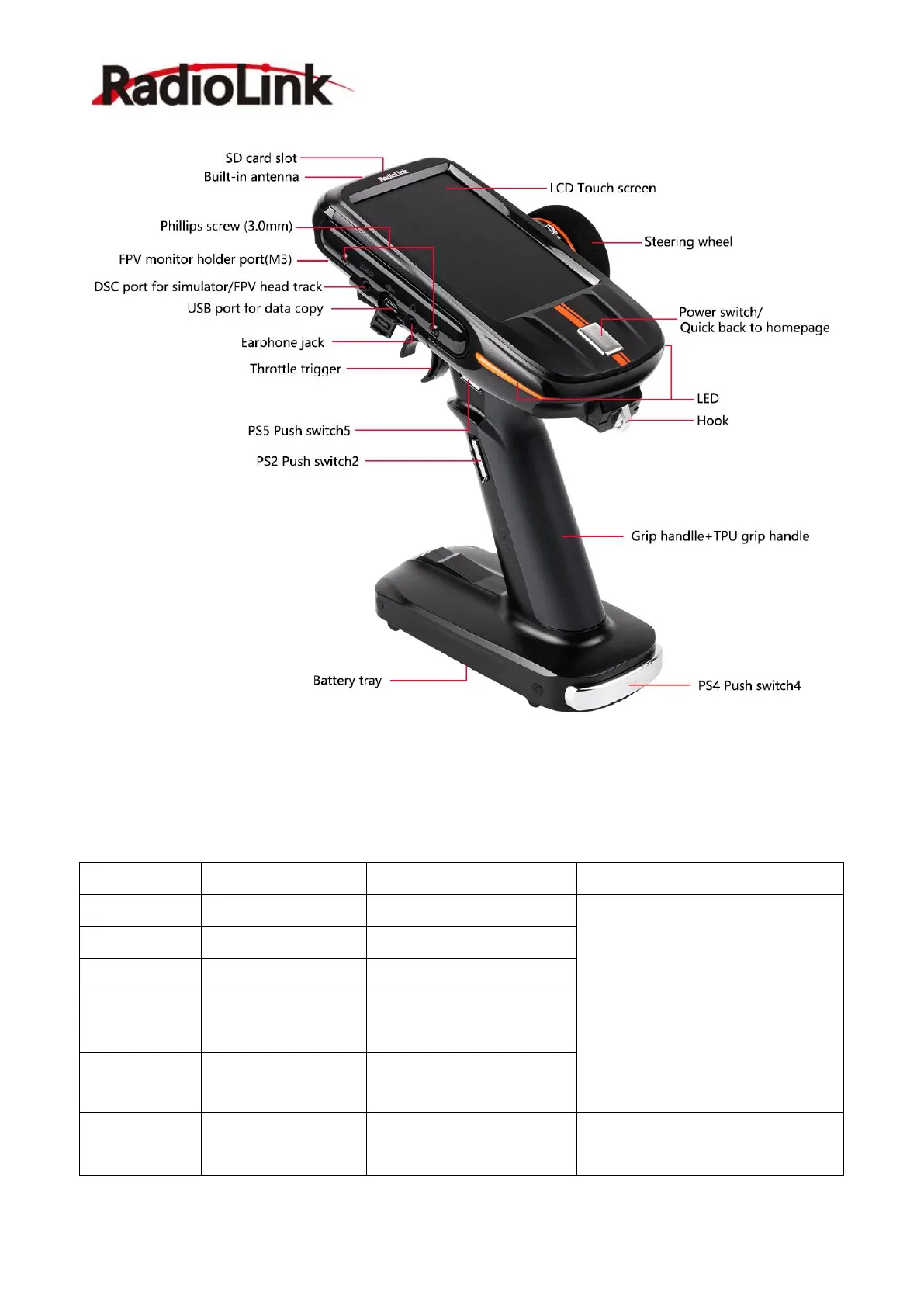

1.2.6 Nomenclature of Buttons
Switch/Knob
Full name
Function
Operation
DT1
Digital Trim 1
default steering trim
Push the button forward to
increase the value and press
backward the button to
decrease the value. Restoration
to factory settings by push the
buttons moving to the left
horizontal direction.
DT2
Digital Trim 2
default throttle trim
DT3
Digital Trim 3
Default dual rate
DT4
Digital Trim 4
Default brake1 rate
(ATL*)
DL1
Digital Dial 1
Code switch, Gyro gain
PS1
Push Switch 1
Default control CH4, can
be programmed
Self-locking switch or trigger
switch can be programmed
