RadioLink RC8X User Manual

RadioLink Electronic Limited
www.radiolink.com
123
③ Operating the steering wheel while operating the trigger to the brake side will operate
the same as the forward side in the reverse direction.
Setting steps: turn on the RC8X into home page, click the button at the left bottom of
RC8X into System menu, click into Mixing menu, click the blue select box named Tank
mixing into the menu to set it.

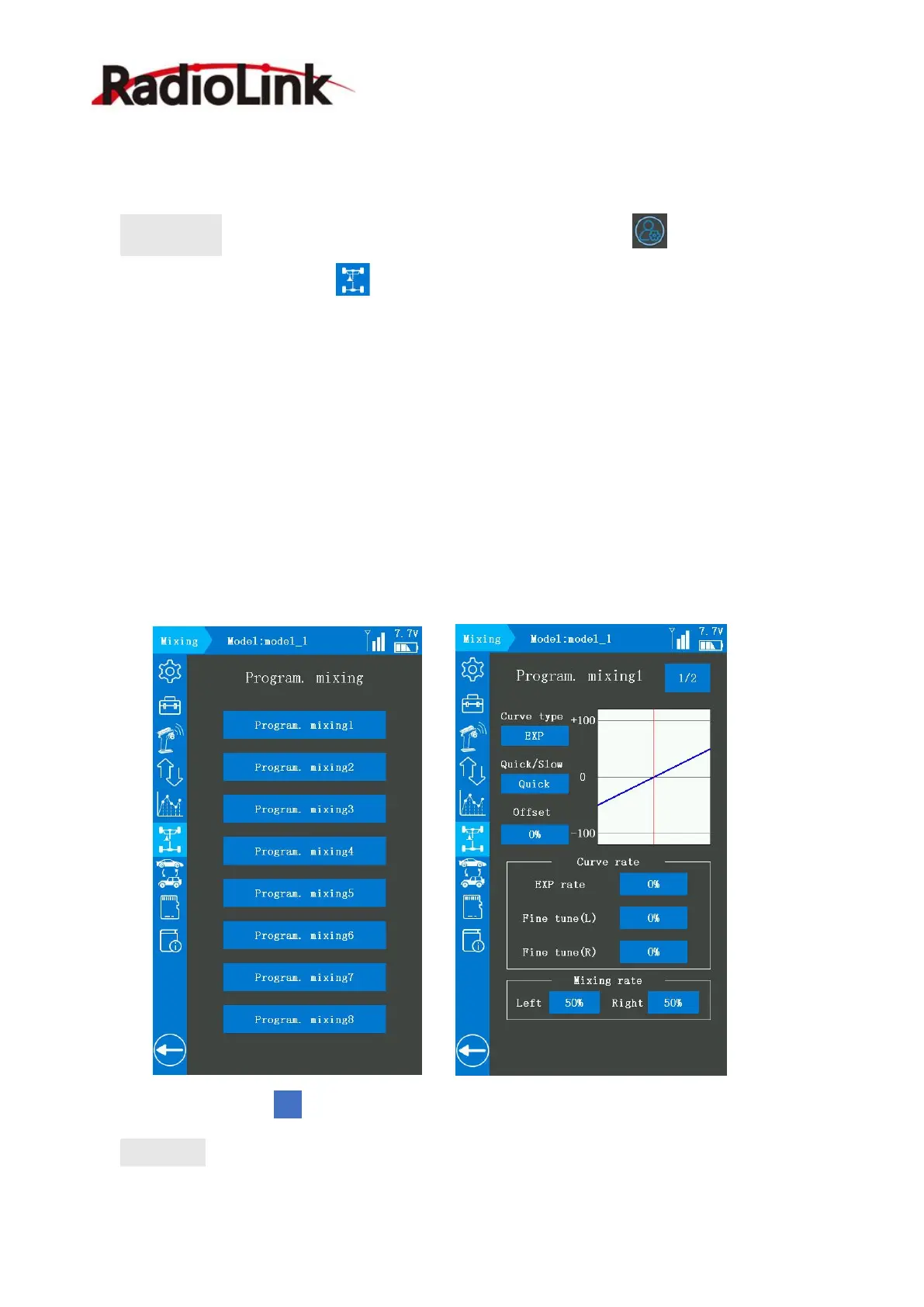

2.6.8 Programmable mixing
These functions allow you to apply to mix between the steering, throttle, and auxiliary
channels.
8 programmable mixings can be selected. The same function for each programmable mixing.
Program. Mixing1 1/2
Curve type: EXP curve, VTR curve, Multiple point curve can be selected.

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
