RadioLink Electronic Limited
www.radiolink.com
146

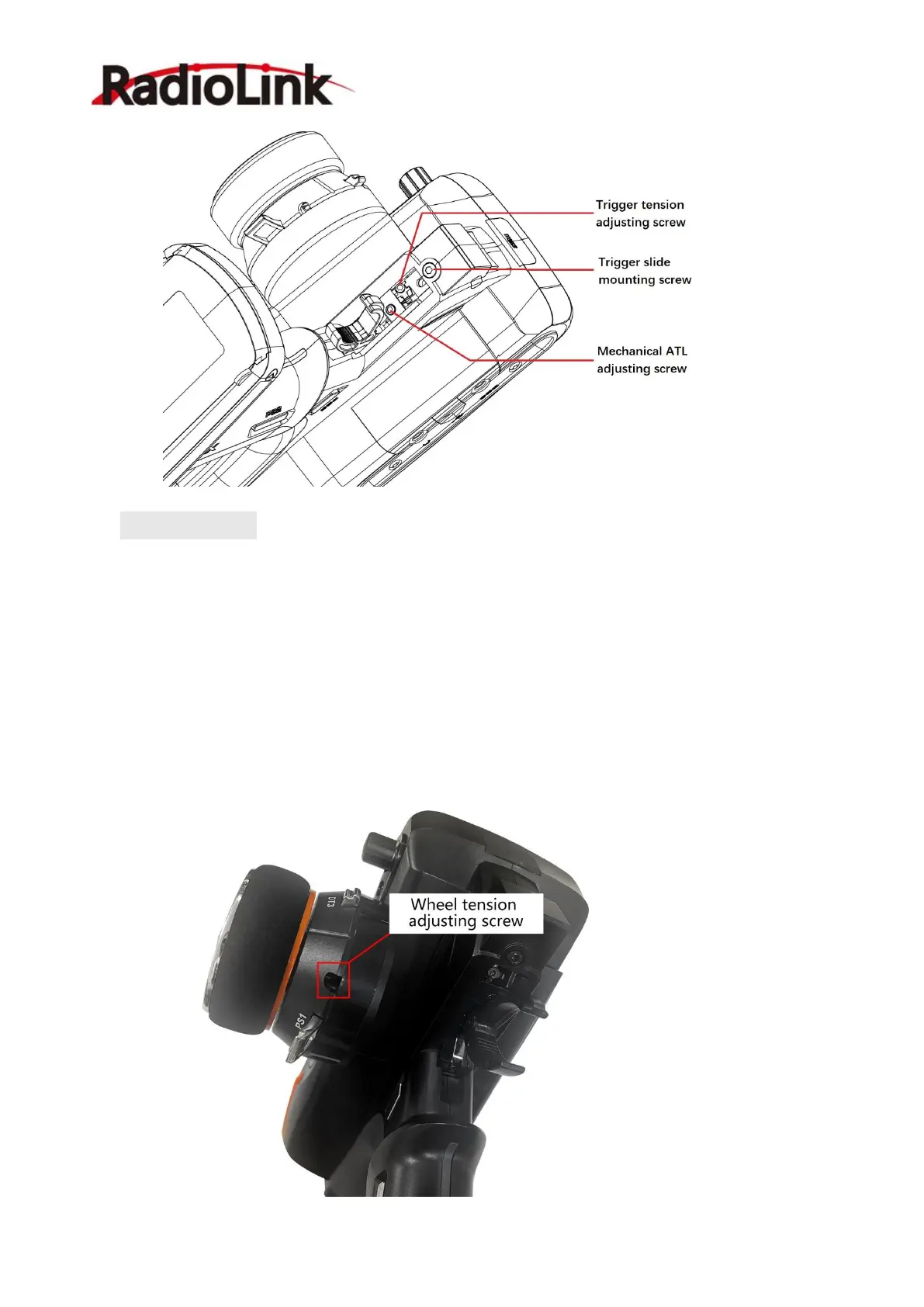

Adjustment steps:
Using a 2.0mm hex wrench, loosen the trigger slide mounting screw (2.0mm) by turning it
slightly counterclockwise. If the trigger slide screw is turned too much, the screw may fall out.
2.11.4 Wheel tension screw adjustment
Adjust the wheel tension screw when you want to change the tension of wheel spring.
