1.3.5 Installment of Receiver Antenna
Please pay attention to the notes below to get the better control distance.
1
Do not cut or bundle the receiver antenna wire.
2

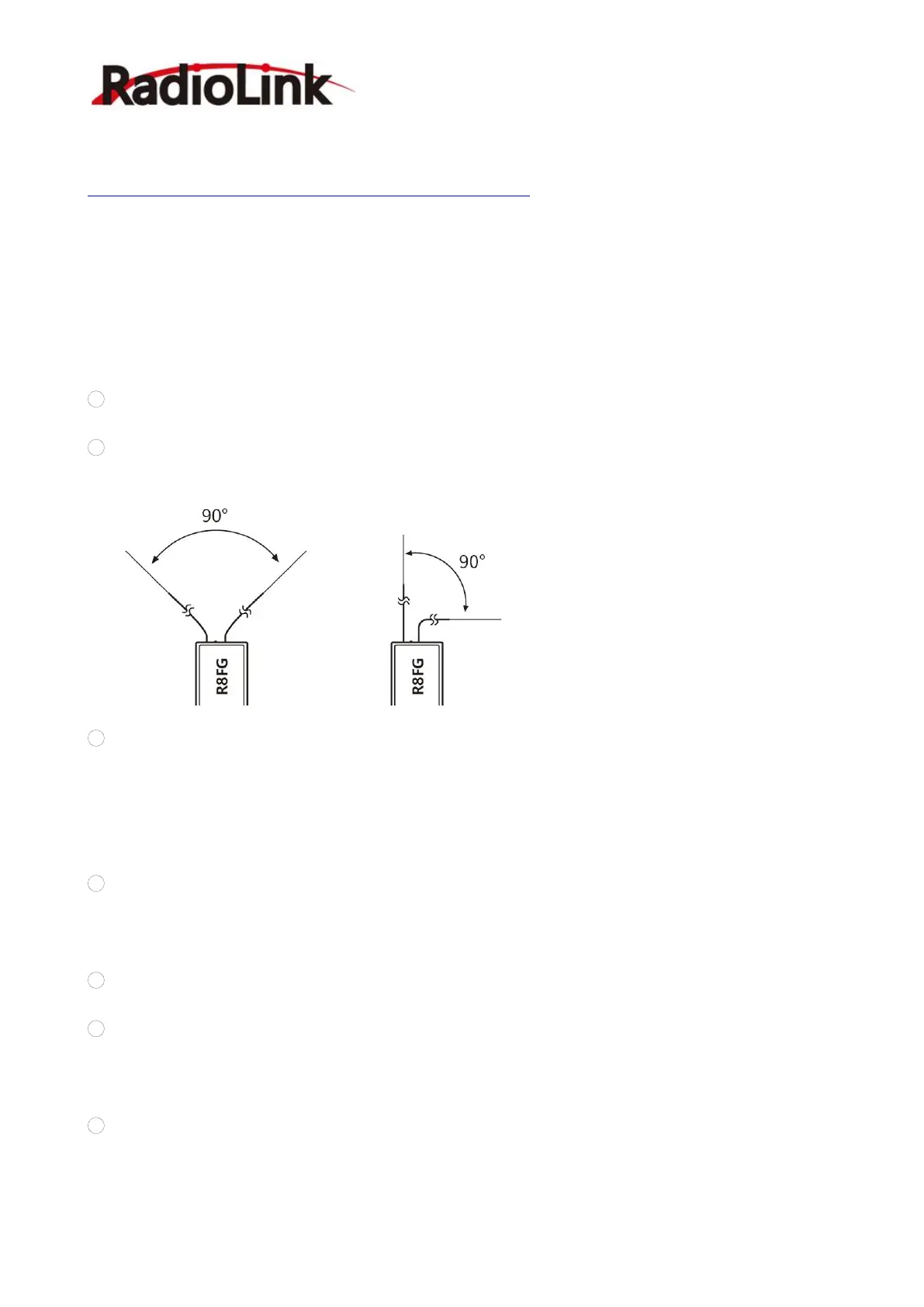

Keep the two antennas at a 90-degree angle.
3
Big models may contain metal parts that influence signal emission. In this case, antennas
should be positioned at both sides of the model to ensure the best signal status in all
circumstances.
4
Antennas should be kept away from metal conductor, carbon fiber, or battery at least
half inch away and no over bending.
5
Keep antennas away from motor, ESC, or other possible interference sources.
6
Do not use a metal receiver antenna holder on a plate made of metal, carbon, or other
conductive material. Install the receiver antenna holder as closely as possible to the receiver.
7
Sponge or foam material is advised to use to prevent vibration when installing receiver.

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
