Receiver contains some electronic components of high-precision. Be careful to avoid
strong vibration and high temperature.
9
Special vibration-proof material for R/C like foam or rubber cloth is used to pack to
protect receiver. Keeping the receiver in a well-sealed plastic bag can avoid humidity and dust,
which would possibly make the receiver out of control.
When all the above steps are complete, please turn off the transmitter and re-power on to test if
the receiver is correctly connected with it.
1.3.6 RSSI Testing
If the control distance of cars or boat is short,
please refer to this instruction to test the transmitter.
This instruction will introduce the test procedure of the
transmitter RSSI value and the solution to the
abnormal RSSI value.
1

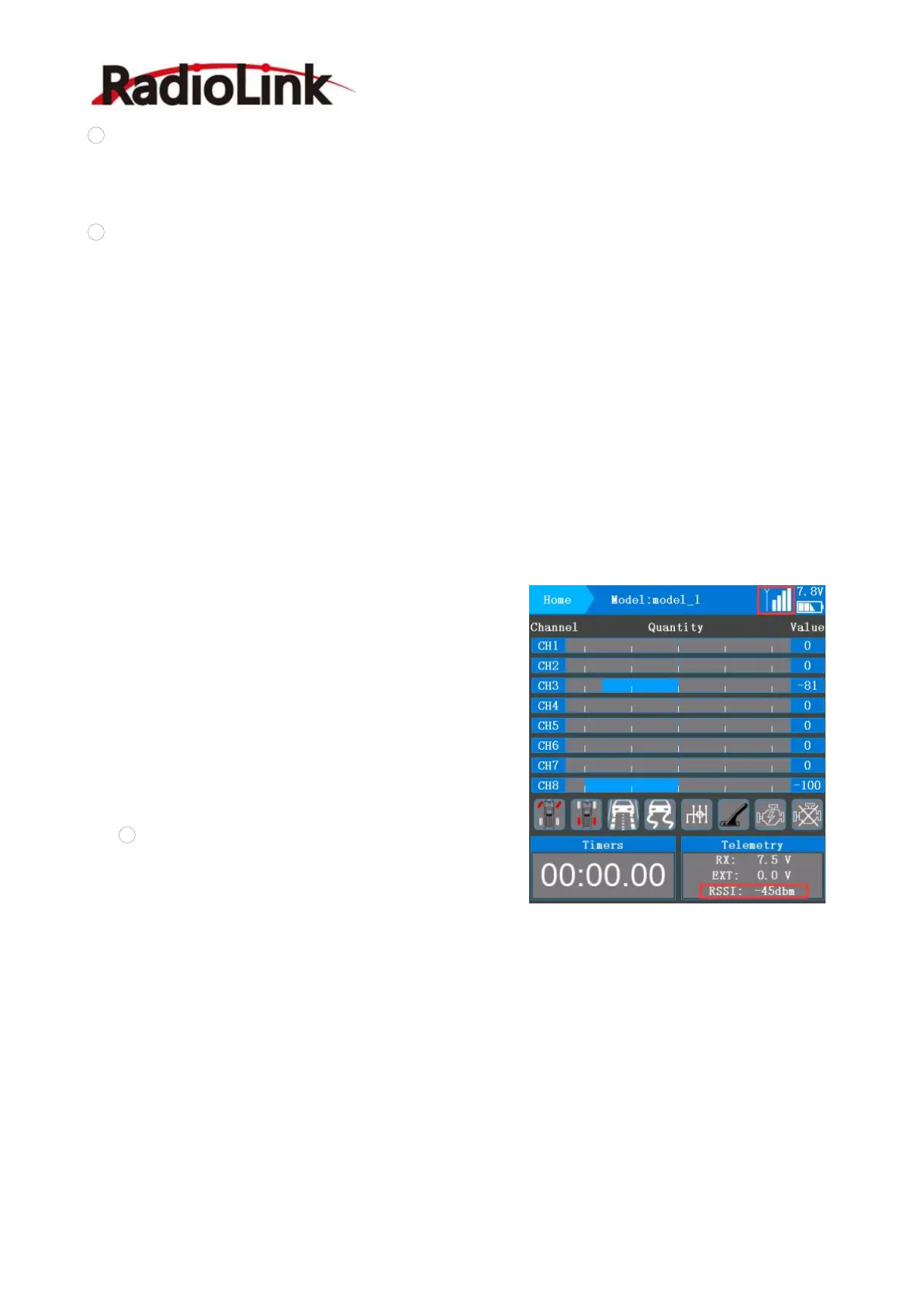

Turn on the transmitter and power on the
receiver at the same time, and then the transmitter and
receiver will be connected (if not connected, you need to bind again), the signal tower appears
on the transmitter interface, indicating that the binding is successful. The value of RSSI will
appears on the Telemetry tooltip, and the RSSI value will keep changing according to the
distance between the transmitter and the receiver.

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
