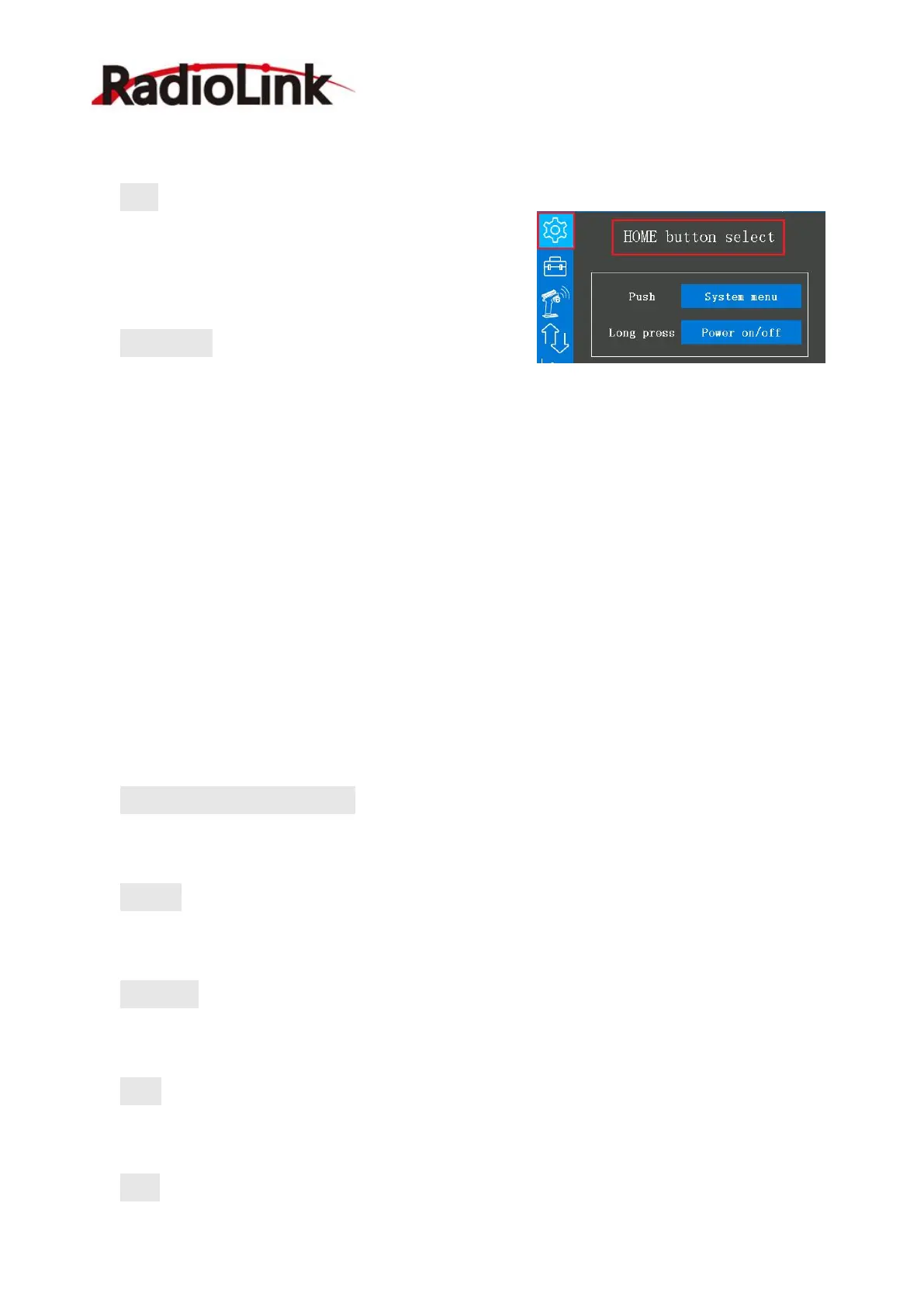

2.1.8 HOME button setting
Push: Short press the home button can make it be a
shortcut key to switch between the current setting page
and the main interface of the transmitter.
Long press: Press the home button about 1.5
seconds can turn on or turn off the transmitter.
Attention: This function is temporarily not adjustable. You can upgrade this function by
upgrading the firmware later.
2.1.9 External input output
This function is mainly for the DSC multi-protocol port (the signal output mode setting when
using equipments such as simulator, trainer cable, head track, Crossfire, and so on ), USB port,
multimedia port working mode selection of RC8X.
Multi-protocol output mode: mainly for the signal type required by the device connected
to the DSC port of the transmitter.
PPM_IN: When the DSC port is connected to the goggles FPV with head tracking function,
select this signal mode;
PPM_OUT: Select this signal mode when the DSC port is connected to the simulator or
trainer cable;
SBUS: When the DSC port is connected to a device that needs to be controlled by the SBUS
signal, select this signal mode;
CRSF: When the DSC port is connected to TBS Crossfire, select this signal mode.

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
