2.4 Telemetry menu
2.4.1 Sensor list
There are 4 kinds of sensors can be set: receiver
signal/receiver voltage/transmitter voltage/EXT voltage.
Other telemetry functions have not yet been available. If
you need to add sensor functions later, you can update
the the firmware.

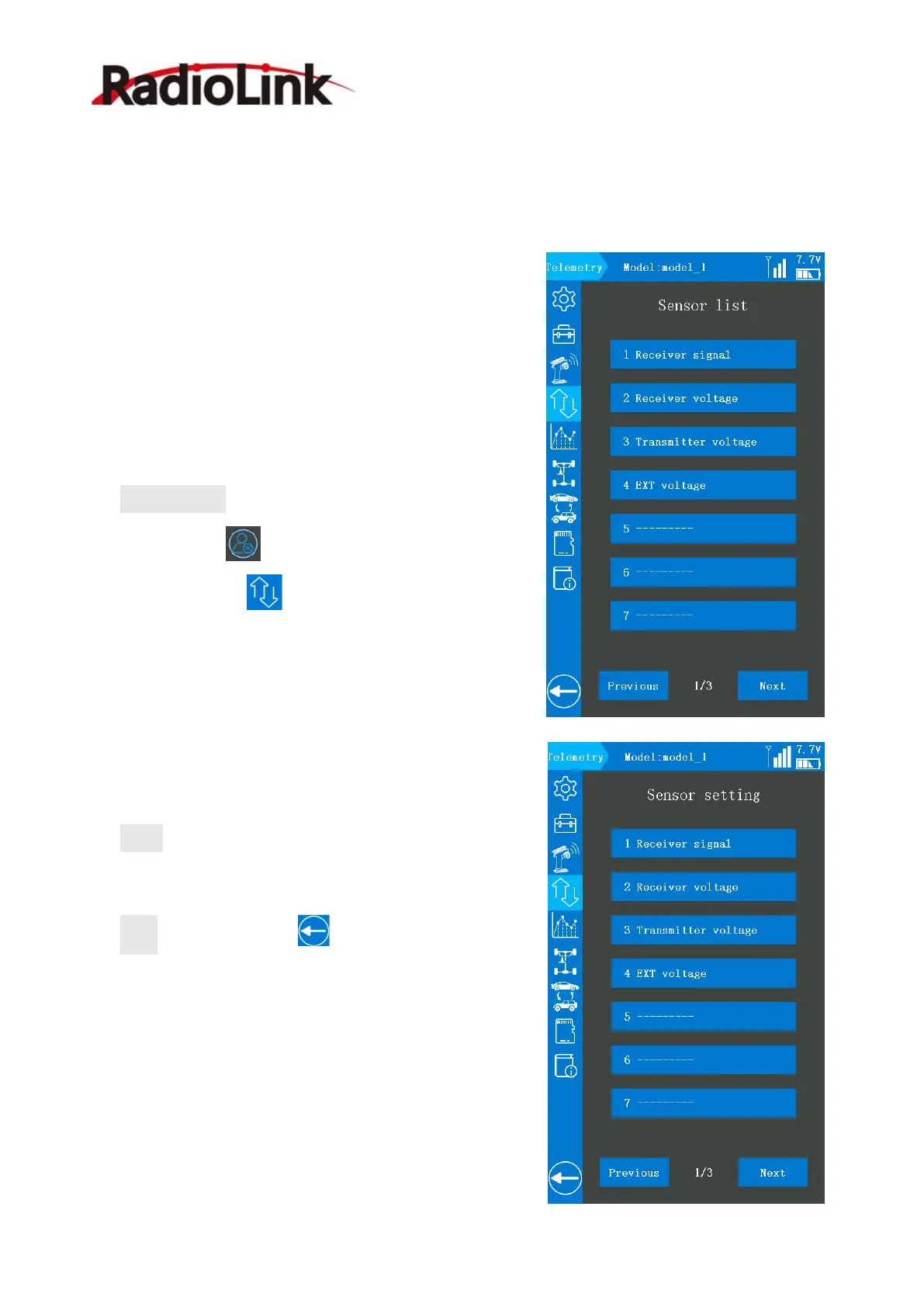

Setting steps: turn on the RC8X, into home page,
click the button at the left bottom of RC8X into
System menu, click into Telemetry menu, click the
blue select box named Sensor list can into the menu to
select the information you want telemetry. Receiver
signal, Receiver voltage, Transmitter voltage, EXT voltage
can be selected.
Reset: click Reset will make the value back to the
default number.
Back: click the button or short press the power
button to return to the previous menu.
2.4.2 Sensor setting
After select the telemetry sensor, the you can set the

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
