RadioLink RC8X User Manual

RadioLink Electronic Limited
www.radiolink.com
13

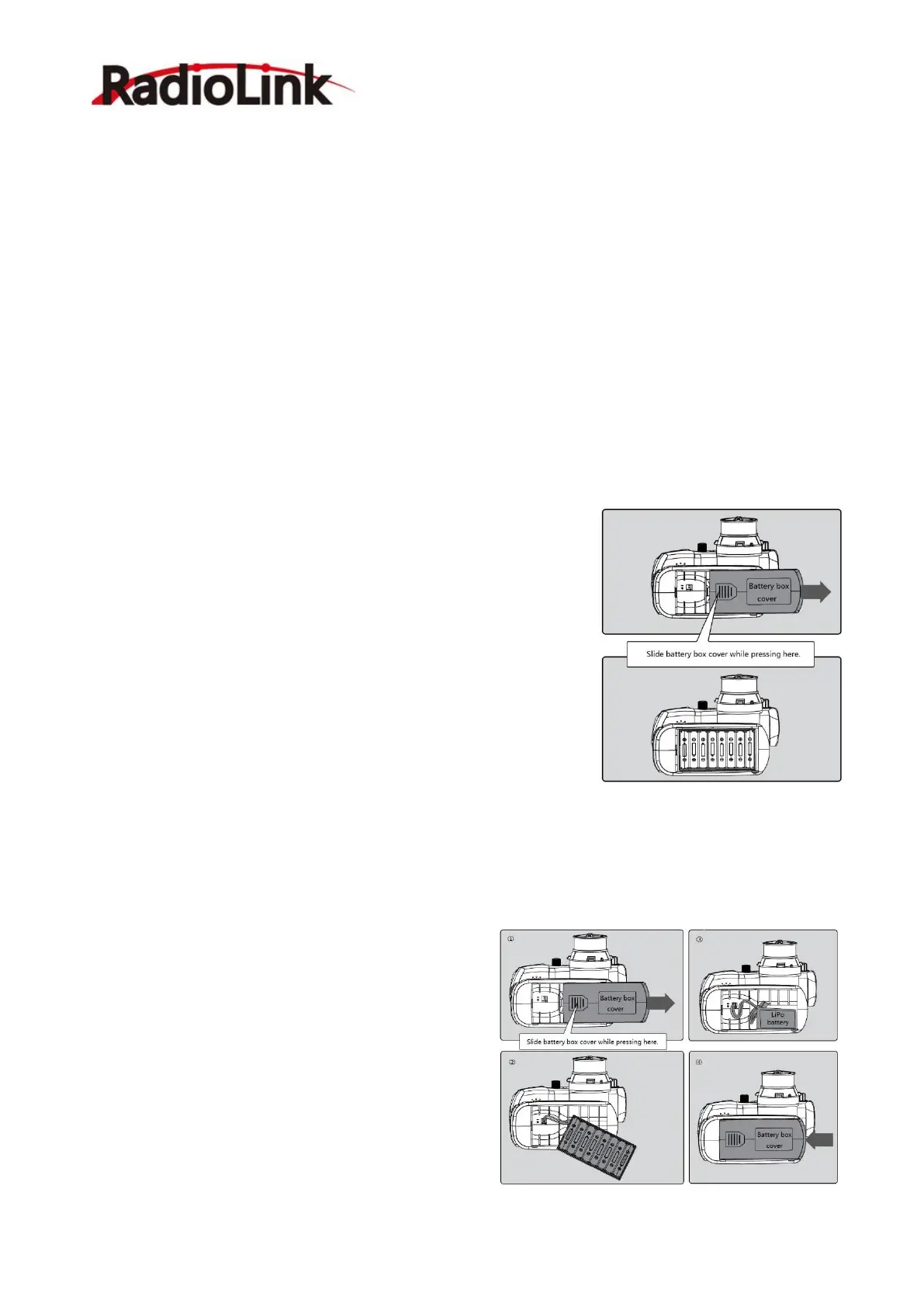

1.2.8 Preparation before Turn on Transmitter
1.2.8.1 Power for Transmitter
RC8X is easily adapted for various battery layouts with wide operating voltage of 7.2V to 17V,
which can use 8 pieces of AAA batteries, a 6S Ni-MH battery or a 2S-4S LiPo battery. Universal
JST connector with the voltage protection software of Radiolink ensures vital components are
protected from a reverse polarity connection.
1) AAA Battery
① remove the battery cover from the transmitter by sliding
it in the direction of the arrow follow the picture at right.
② load 8 pieces new AAA batteries. Pay attention to the
polarity markings.
③ make sure the 8 pieces AAA batteries are not loose.
④ Slide the battery cover back onto the case.
2）LiPo Battery
① remove the battery cover from the
transmitter by sliding it in the direction of the
arrow follow the picture at right.
② remove the battery box.
③ plus a LiPo batteries. Pay attention to the
polarity markings.

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
