RadioLink RC8X User Manual

RadioLink Electronic Limited
www.radiolink.com
145

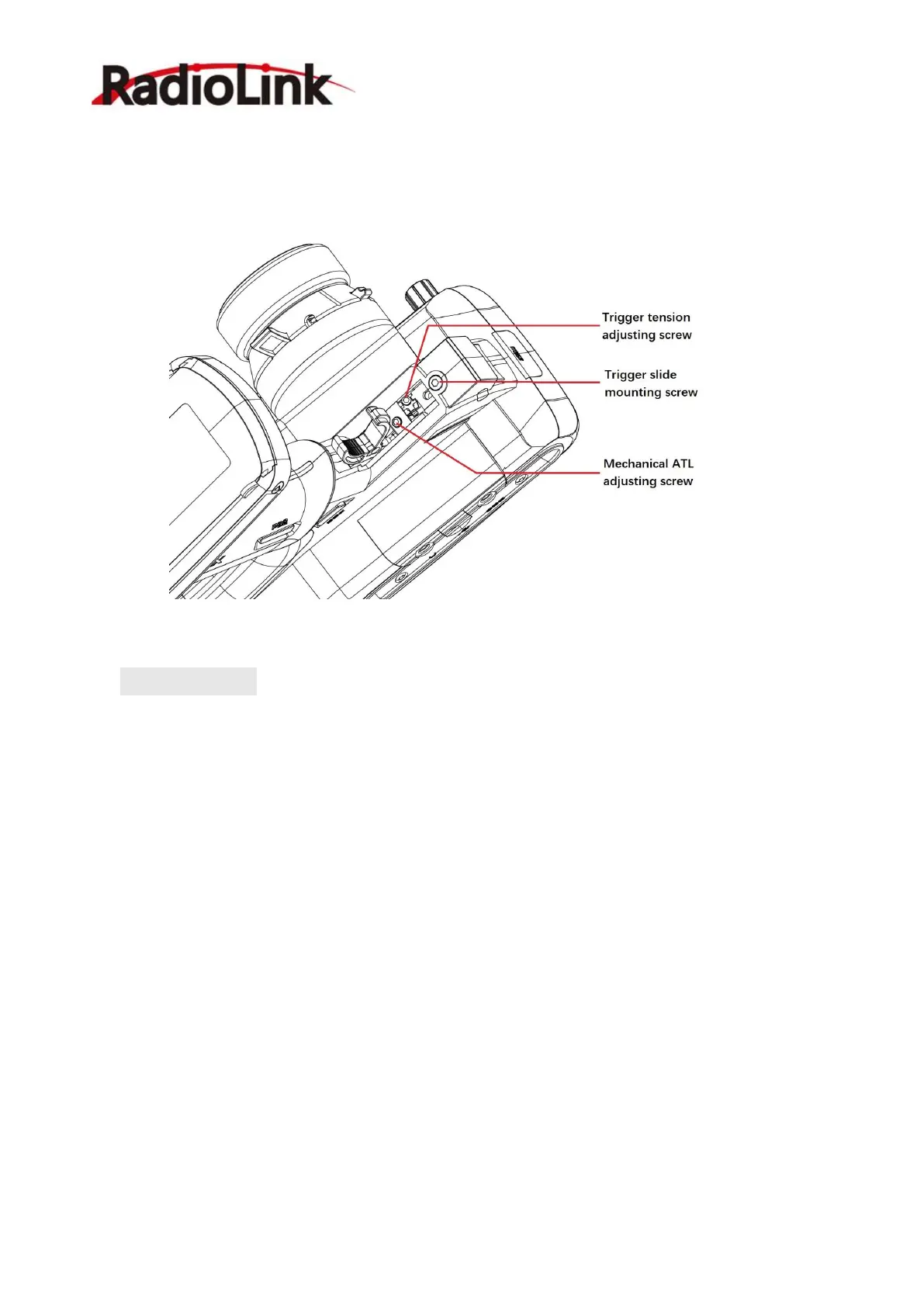

2.11.2 Trigger tension screw adjustment
Adjust the trigger tension screw when you want to change the tension of trigger spring.
Adjustment steps:
Using a 1.5mm hex wrench, loosen the trigger tension screw (1.5mm) by turning it slightly
counterclockwise. If the trigger tension screw is turned too much, the screw may fall out.
When the adjusting screw is turned clockwise, the spring tension increases.
2.11.3 Trigger slide adjustment
The throttle trigger position can be moved forward and backward by loosening or tightening
the screw.

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
