RadioLink RC8X User Manual

RadioLink Electronic Limited
www.radiolink.com
150

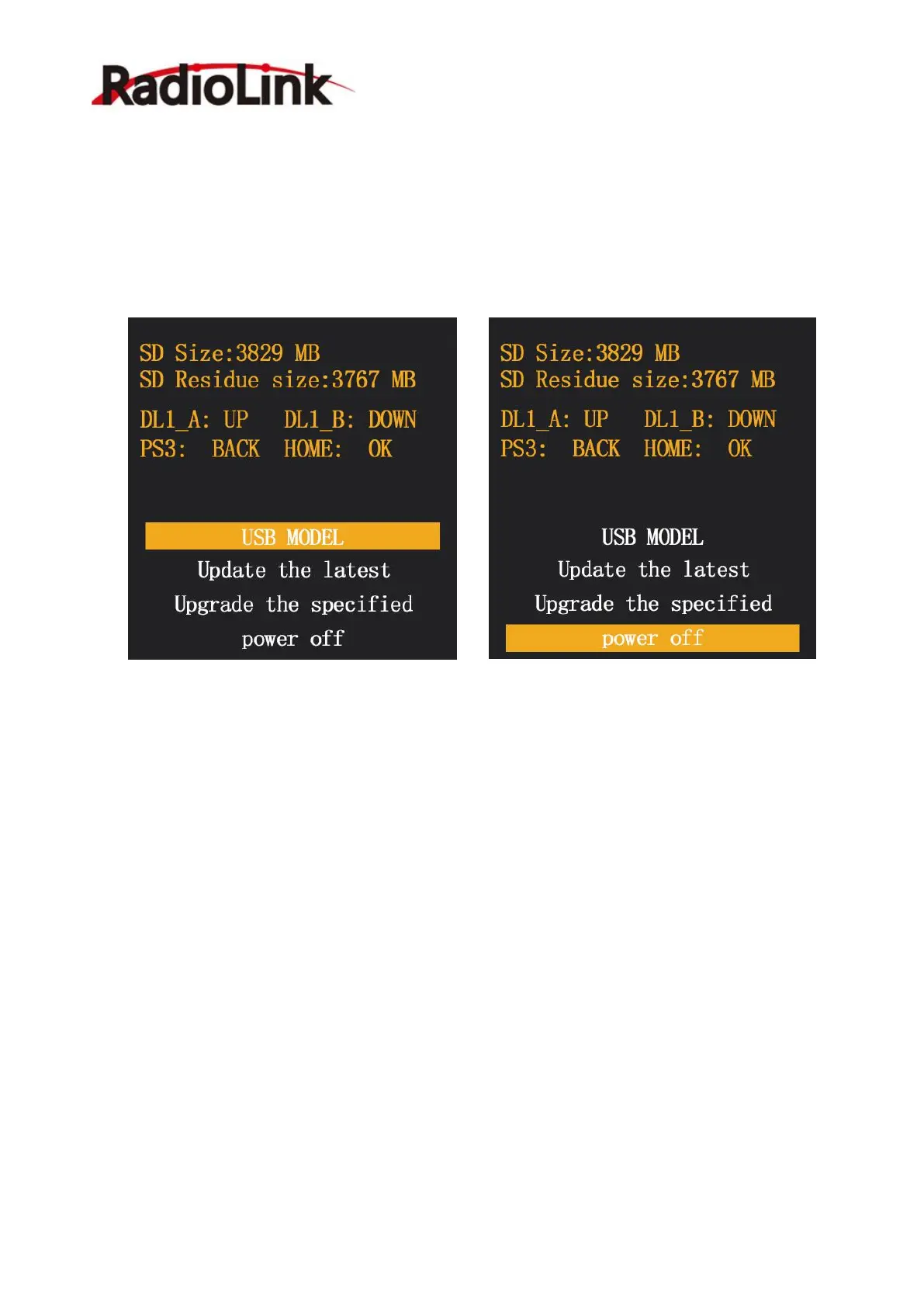

⑤ exit the update mode
> Press PS3 button to return to the previous menu.
> Turn DL1 knob to turn the yellow background cursor to “power off”.
> Short press the power button to exit the upgrade mode.
Attention: if “firmware reads fail!” pop out at the bottom of the screen means the transmitter
RC8X have not find out the firmware from the microSD card, please copy the latest firmware to
the microSD card first, and then reupdate follow the steps above.
2) “Upgrade the specified” Mode
If you have copied the upgrade firmware to the microSD card, but you have modified the
firmware name, then the “Upgrade the specified” update mode is be suggested.
① Enter the update mode setting menu
>power on the RC8X, but do not turn it on.
>Push DT1 and DT2 TRIM buttons to the middle at the same time, and then long press the power
button to enter the upgrade mode. The computer will pop out that a USB drive is inserted.

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
