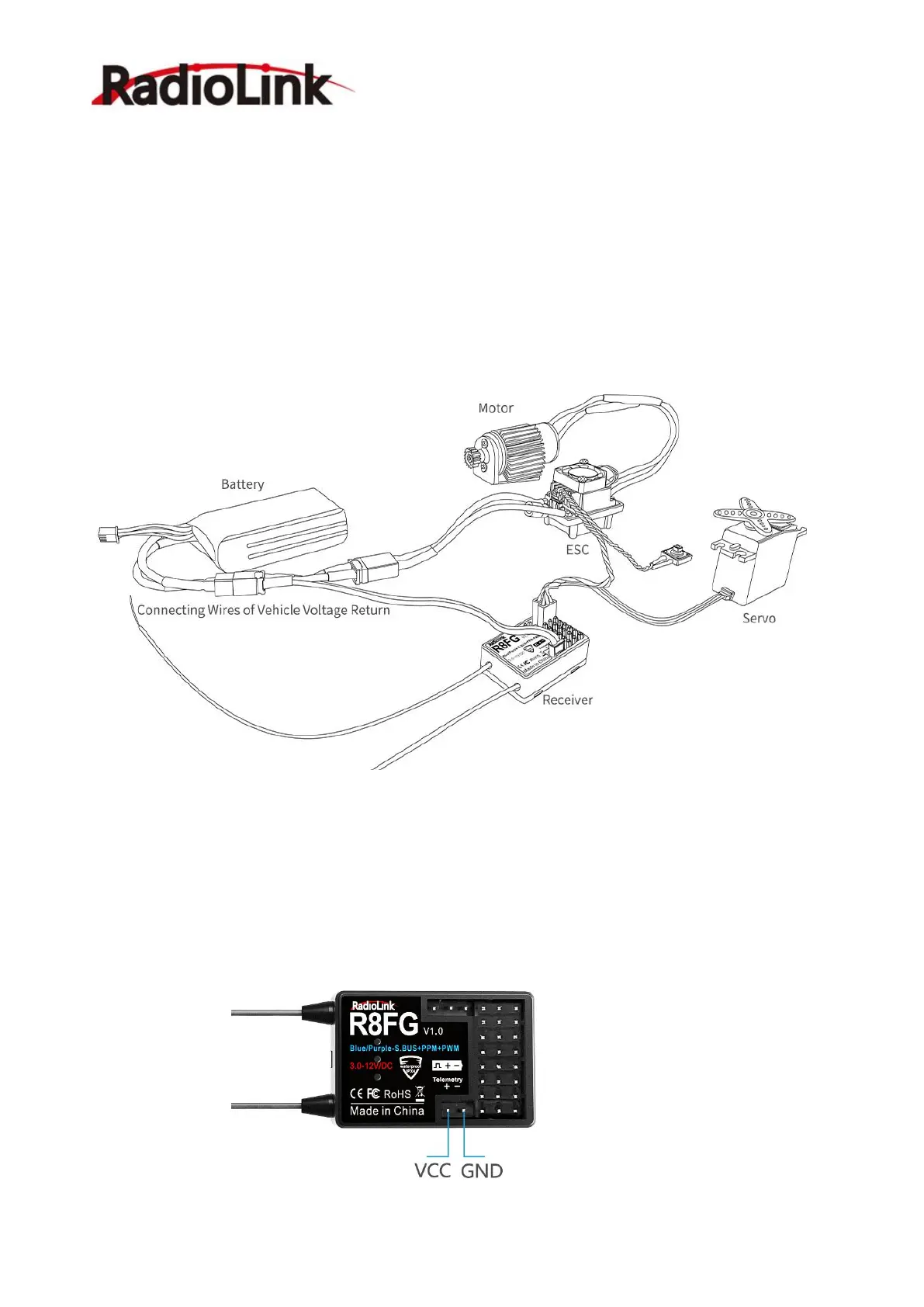

connects Telemetry (+-) of R8FG as below picture shown. No extra module is needed.
Once connect with success, the returned model voltage will be displayed on the
interface of returned flight information.
Note Battery connected to Telemetry port is only for 2S-6S battery voltage telemetry,
R8FG should be powered supplied by connecting to the CH2 pins on right.
Attention: Reverse polarity protection circuit design for all 8 channels of R8FG ensures vital
components are protected from a reverse polarity connection. But, the JST connector which
packed with R8FG for connect to battery cannot reverse polarity connect, or it will lead to the
wrong voltage value telemetry.

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
