(TS) indicates the Throttle Switch
The position of the switches on the transmitter, please refer to 1.2.5 Buttons Introduction

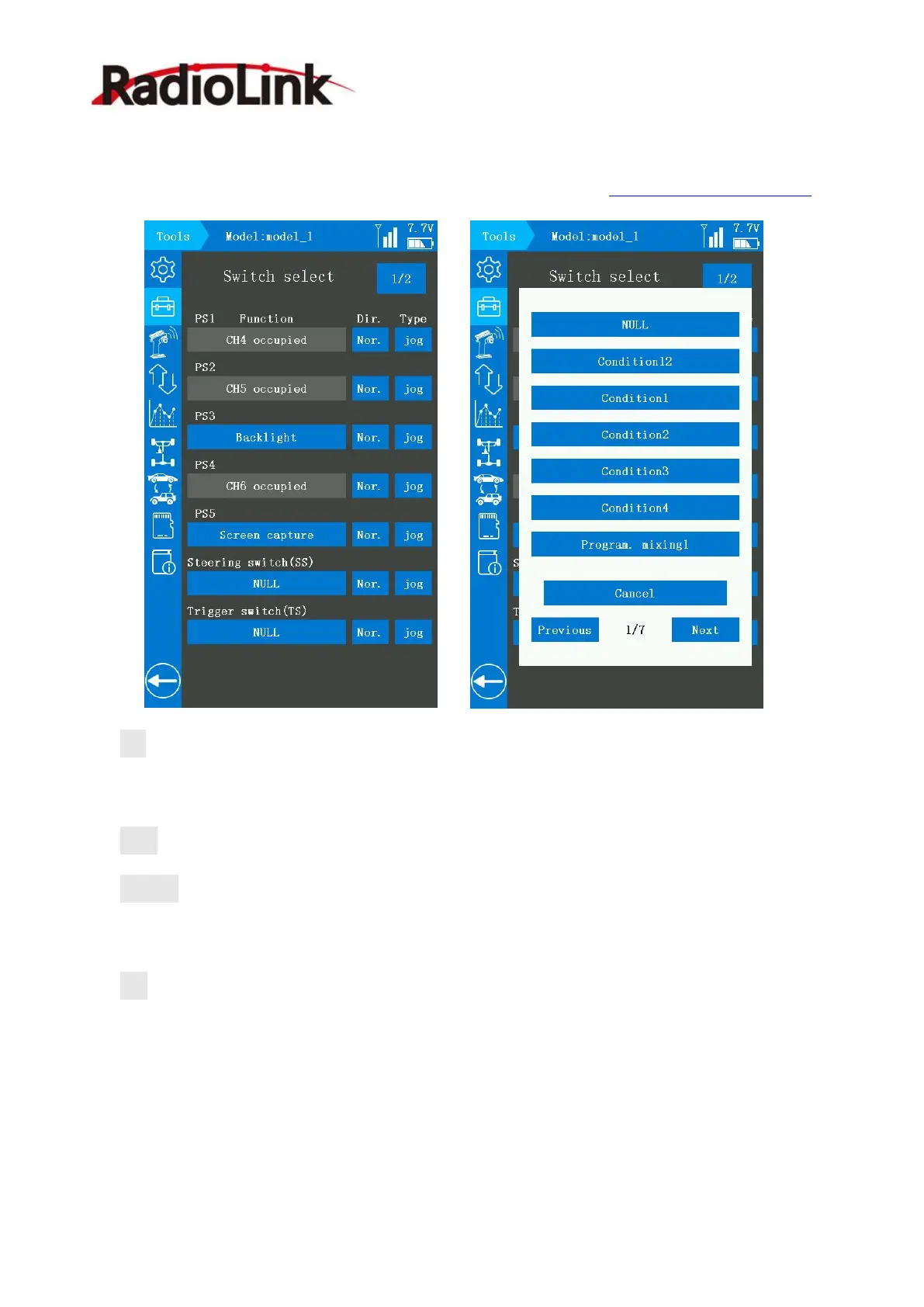

Dir.: Indicate the direction of the buttons, normal and reverse can be selected. Tap the blue
select box to set “Nor.” or “Rev.”, the corresponding servo will display as +100 or -100.
Type: Self-lock or jog can be selected.
Self-loc: If set the button as a self-lock button, it can be used as a 2-position switch, press it
once to one position, and press it again to the other position.
Jog: If set the button as a jog button, the value will reach the maximum (or the minimum)
when pressing the button, and back to the original value when loosen. For example: if set the
“Dir.” of the PS1 is “Nor.” and the “Type” is jog, the servo value will reach +100 when
pressing the PS1 and the servo value will back to -100 when loosen.

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
