Instrument functions
R&S
®
LCX Series
91User Manual 1179.2260.02 ─ 02
1
2
3
4
6
5

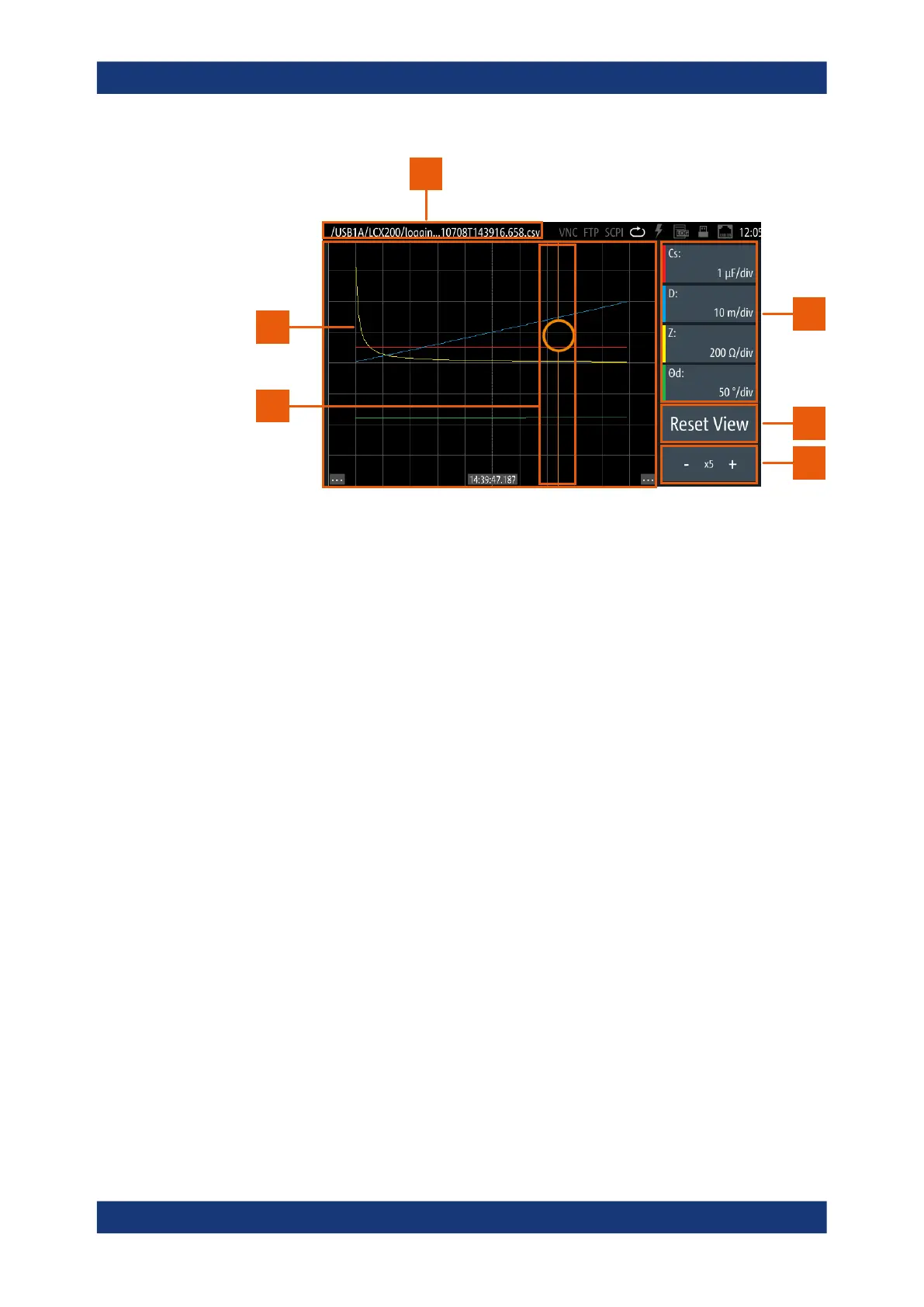

Figure 8-15: Log chart controls
1 = File name of the logging file
2 = Parameter pair softkeys
3 = Reset softkey
4 = Resolution softkey
5 = Capture indicator when touching and dragging within the graph
6 = Traces of the measured parameters
The main window shows the traces of the measured parameters, which you can
select and configure with the softkeys on the right. You can set the resolution and
shift the displayed traces within the graph with touch and drag.
How to: see Chapter 8.8.2.2, "Displaying recordings in the log chart", on page 92
<logging file name>.......................................................................................................91
<measurement parameter>...........................................................................................91
Reset View....................................................................................................................92
- x1 +............................................................................................................................. 92
<touch capture indicator>..............................................................................................92
<traces>........................................................................................................................ 92
<logging file name>
Indicates the file name of the loaded logging file.
Initially, the R&S LCX creates a file name composed of an identifier for a logging file
<log>, a time stamp and a generic number. File format and extension are .csv.
Remote command:
LOG:FNAMe on page 202
<measurement parameter>
Indicates the measurement parameter taken from the log file.
Specific instrument functions
