Setting range 0.00 Hz ~ [b1.06]
Minimum unit 0.01 Hz
Factory default 0.00 Hz
E0.27 Curve 2 max. reference
Setting range [E0.25] ~ 100.0 %
Minimum unit 0.1 %
Factory default 100.0 %
E0.28 Frequency corresponding to curve 2 max. reference
Setting range 0.00 Hz ~ [b1.06]
Minimum unit 0.01 Hz
Factory default 50.00 Hz
E0.29 ~ E0.39: Reserved
The frequency converter has two external analog inputs, AIV voltage signal (0 ~
10 V) and AIC current signal (4 ~ 20 mA). When AIV or AIC input is used as the
reference frequency channel, the relation between the reference channel and
the set frequency is illustrated as below:

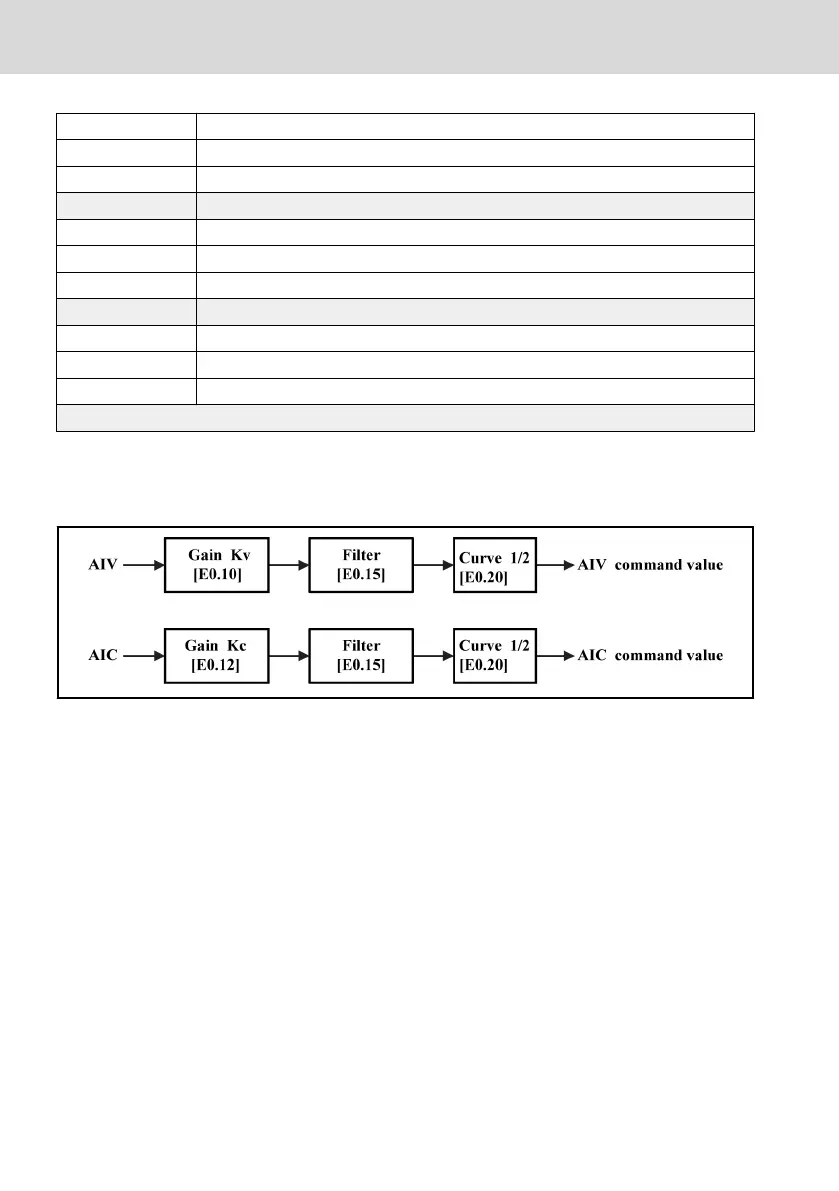

Fig. 8-34: Relationship between reference channel and set frequency
● The relationship between "the reference frequency after gain and filter pro-
cessing" with "the set frequency commands" is determined by E0.21 ~ E0.28
and E0.20.
● AIC and AIV can use both curve 1 and curve 2.
● E0.21 ~ E0.24 are used to define characteristics of curve 1. See figure below:
Bosch Rexroth AG
Parameter Settings
EFC 3600
96/259
DOK-RCON03-EFC-3600***-IT03-EN-P
