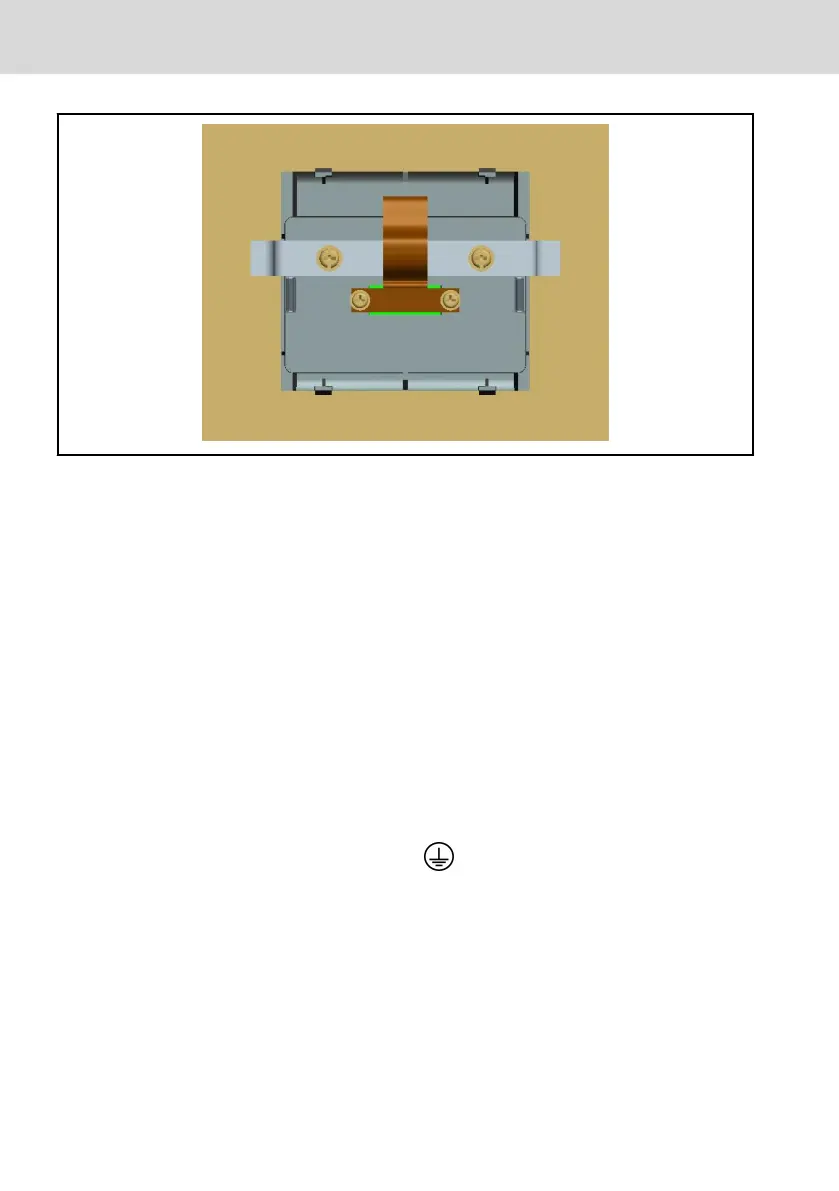

Fig. 12-18: Connect and fix the cable
12.6.2 Operating Panel Cable for Control Cabinet Mounting
The cable FRKS0005/001,0, which is 1 m long (see chapter 17.3 "Appendix 3:
Type Coding" on page 242), is used to connect the operating panel for control
cabinet mounting with the frequency converter. The cable FRKS0004/003,0,
which is 3 m long (see chapter 17.3 "Appendix 3: Type Coding" on page 242),
can be also used for the connection of the operating panel. For connection of
the FRKS0005 or FRKS0004 cable, it is necessary to remove the panel at the fre-
quency converter and connect the cable there.
12.7
Accessories for Shielded Cable Connection
The shielding layer of shielded cables must be reliably connected to the shield-
ing terminals of the frequency converter. Accessories (a holder and two screws)
for shielded cable connection are available for the connection convenience.
Connection steps
Step 1: Loosen two screws near symbols
on the heat sink of the frequency
converter.
Step 2: Place component ① of the holder under the screw gaskets, and then
tighten the two screws.
Step 3: Insert the shielded cables through component ② of the holder with the
shielding layer reliable contact with the metal.
Step 4: Tighten two screws of the accessories (component ③).
Bosch Rexroth AG
Accessories
EFC 3600
182/259
DOK-RCON03-EFC-3600***-IT03-EN-P
