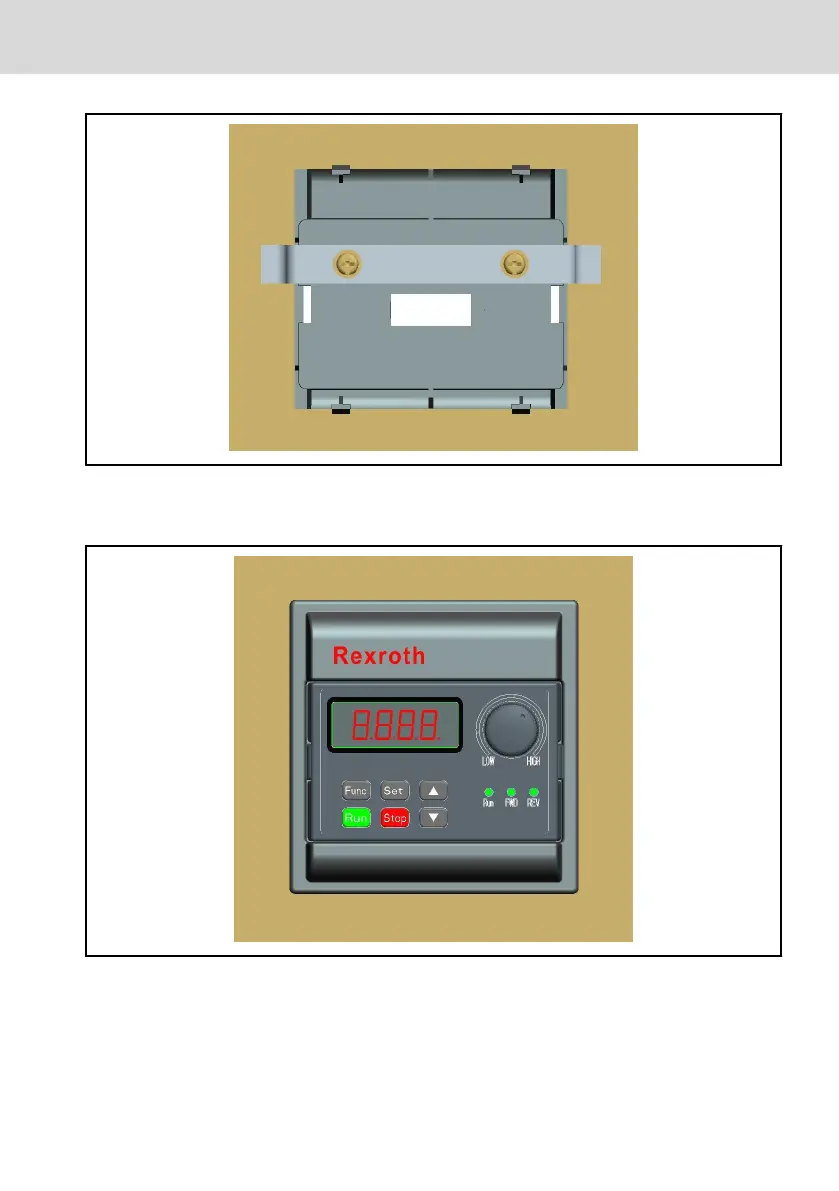

Fig. 12-16: Fix the mounting plate
Step 3: Push the operating panel in the direction perpendicular to the mounting
plate, the front view is as below.
Fig. 12-17: Mount the operating panel
Step 4: Connect the operating panel to the frequency converter with the con-
nection cable and fix the cable connector on the mounting plate with 2 M3x10
screws.
EFC 3600
Bosch Rexroth AG
Accessories
DOK-RCON03-EFC-3600***-IT03-EN-P
181/259
