6 Operating Panel
6.1 Figure and Description
The operating panel is removable and composed of two areas: display and keys.
The display shows mode settings and operation state of the frequency convert-
er. The keys allow the user to program the frequency converter.

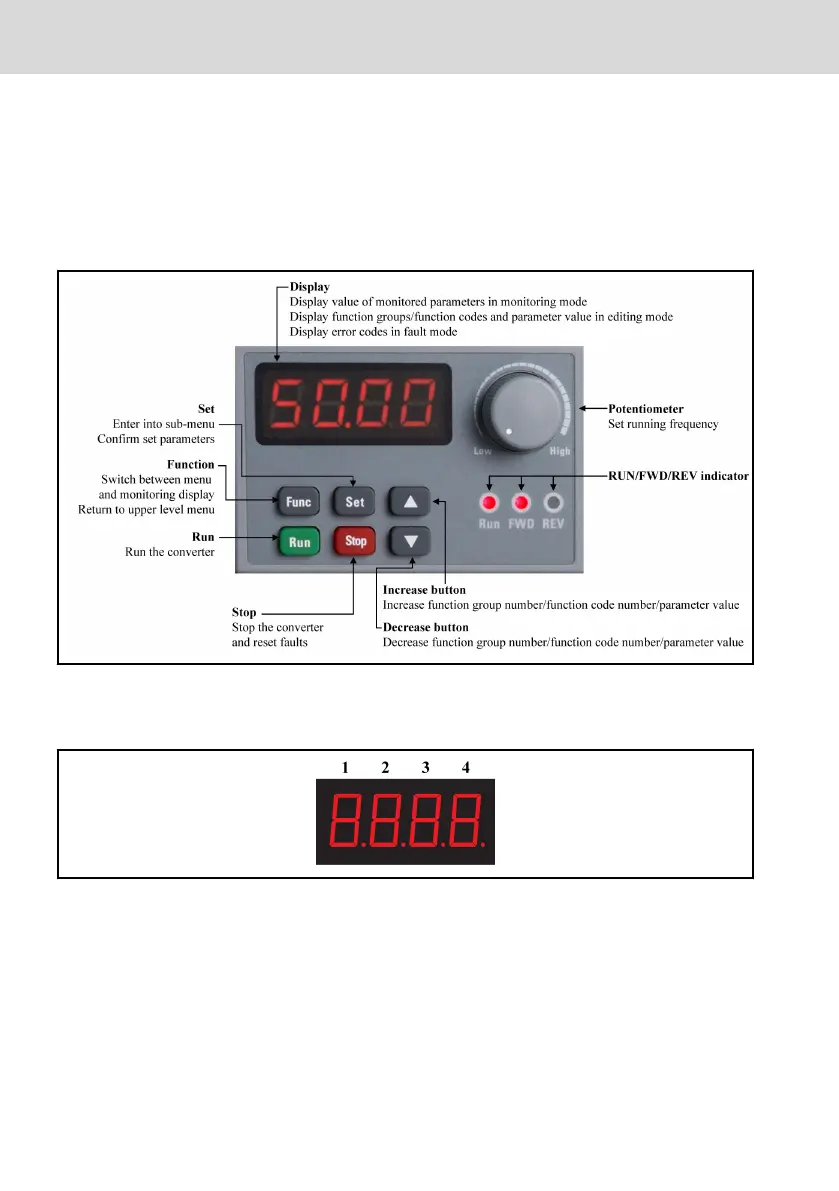

Fig. 6-1: Operating panel
6.2 Seven-segment Display
Fig. 6-2: Seven-segment display
Display has only 4 digits, but values with up to 5 digits may be displayed.
● To view the first 4 digits: press buttons Func+▲.
● To view the last 4 digits: press buttons Func+▼.
Bosch Rexroth AG
Operating Panel
EFC 3600
38/259
DOK-RCON03-EFC-3600***-IT03-EN-P
