8.7.2 Frequency Detection
E1.04 Frequency arriving at detection width
Setting range 0.00 ~ 400.0 Hz
Minimum unit 0.01 Hz
Factory default 2.50 Hz
This function is used to detect the difference between the output frequency and
the set frequency. The indicative signals are outputted when the difference be-
tween the output frequency and the set frequency is within the range set in
E1.04, as shown in the figure below:

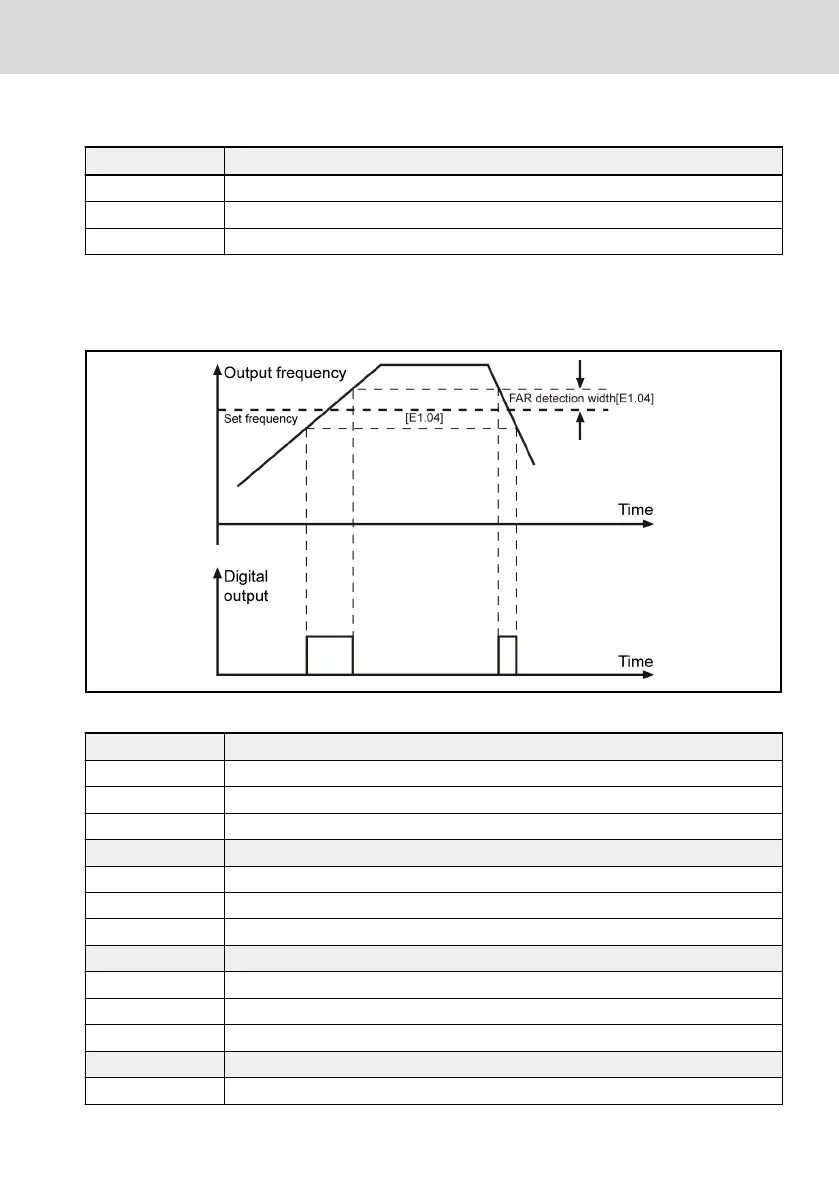

Fig. 8-41: Frequency arriving at detection width
E1.05 Frequency detection level FDT1
Setting range 0.00 ~ 400.0 Hz
Minimum unit 0.01 Hz
Factory default 50.00 Hz
E1.06 Frequency detection level FDT1 width
Setting range 0.00 Hz ~ [E1.05]
Minimum unit 0.01 Hz
Factory default 1.00 Hz
E1.07 Frequency detection level FDT2
Setting range 0.00 ~ 400.0 Hz
Minimum unit 0.01 Hz
Factory default 25.00 Hz
E1.08 Frequency detection level FDT2 width
Setting range 0.00 Hz ~ [E1.07]
