REXROTH EFC 3600 - Group S0: V;F Control; V;F Curve

8.3 Group S0: V/F Control
8.3.1 V/F Curve
S0.00 V/F control mode
Setting range 0 ~ 2
Minimum unit 1
Factory default 0
● 0: Linear mode
This mode refers to linear voltage / frequency control, which is suitable for
normal constant torque loads as shown in the figure below.

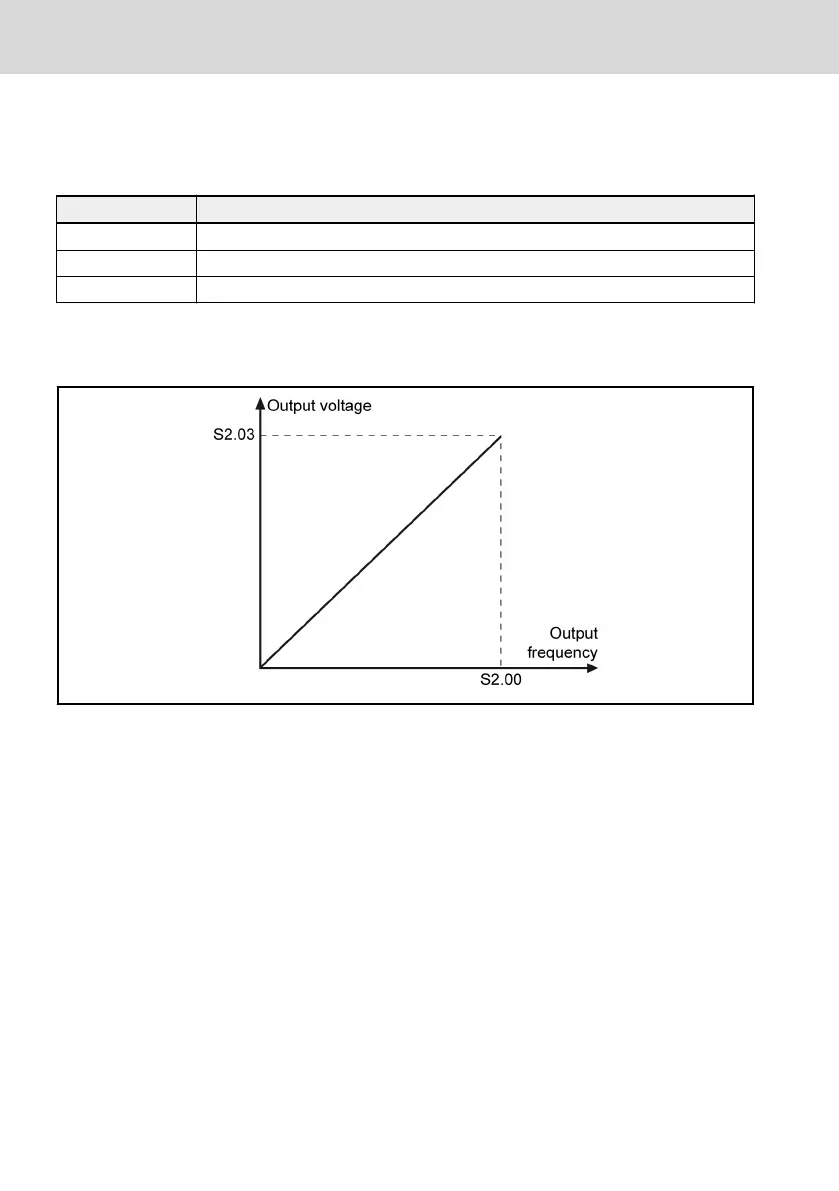

Fig. 8-12: Linear mode
● 1: Square curve
This mode refers to square voltage / frequency control, which is suitable for
variable torque loads of fans, pumps, etc.
