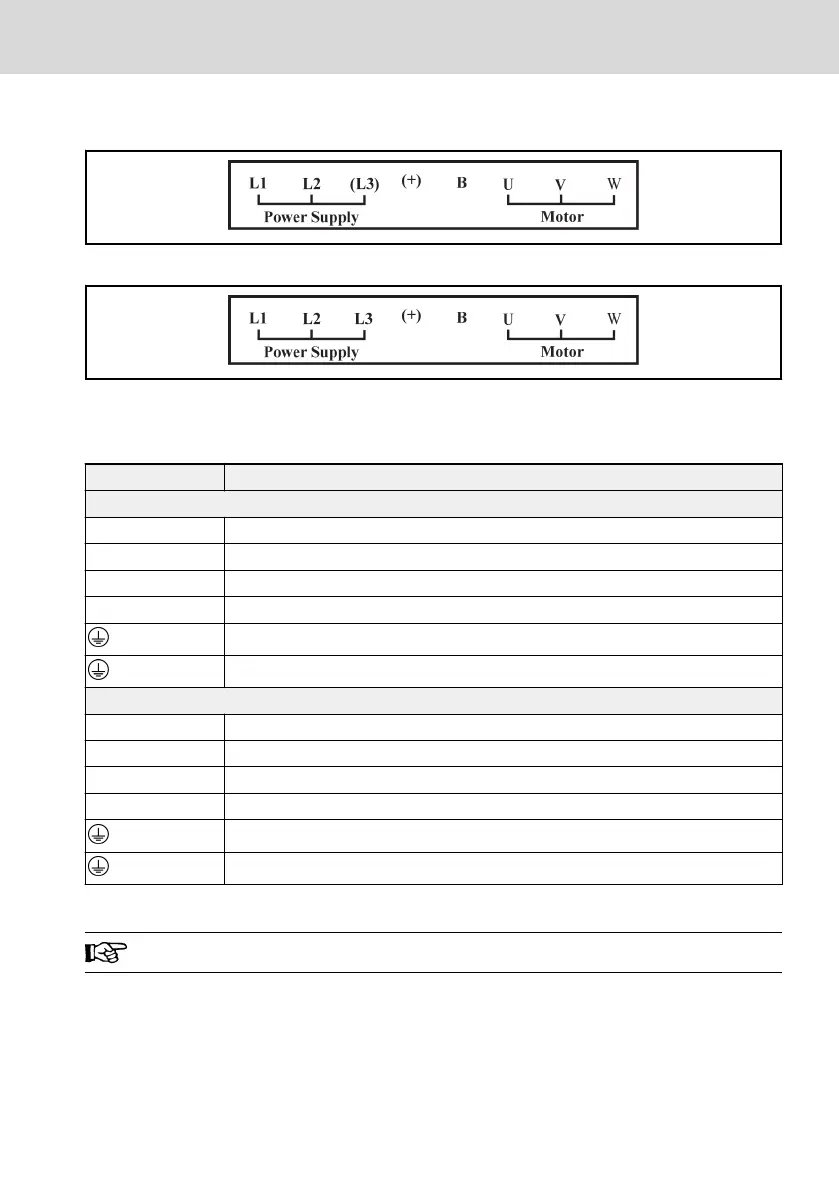

5.7 Main Circuit Terminals
Fig. 5-7: Main circuit terminals (1x200 V)
Fig. 5-8: Main circuit terminals (3x400 V)
5.8 Main Circuit Terminals Description
Terminal Description
1-phase AC 200 V class
L1, L2 Mains power supply inputs
U, V, W Frequency converter outputs (to be connected to the motor)
B Reserved terminal for external brake resistor
(+) DC positive bus output
Input PE (located at bottom left of the heat sink)
Grounding (located at bottom right of the heat sink)
3-phase AC 400 V class
L1, L2, L3 Mains power supply inputs
U, V, W Frequency converter outputs (to be connected to the motor)
B Reserved terminal for external brake resistor
(+) DC positive bus output
Input PE (located at bottom left of the heat sink)
Grounding (located at bottom right of the heat sink)
Tab. 5-3: Main circuit terminals description
Do not use terminal L3 for 1P AC 200 V class models!
EFC 3600 Bosch Rexroth AG
Mounting and Installation
DOK-RCON03-EFC-3600***-IT03-EN-P
27/259
