8.5 Group S3: Running Parameters
8.5.1 Jogging Parameters
S3.00 Jogging frequency
Setting range 0.00 Hz ~ [b1.05]
Minimum unit 0.01 Hz
Factory default 5.00 Hz
S3.01 Jogging acceleration time
Setting range 0.1 ~ 6,000.0s
Minimum unit 0.1s
Factory default 5.0s
S3.02 Jogging deceleration time
Setting range 0.1 ~ 6,000.0s
Minimum unit 0.1s
Factory default 5.0s
S3.03 ~ S3.04: Reserved
● Jogging command input has the highest priority and is independent of the
“RUN” / ”STOP” command input. As long as jogging command is activated,
the frequency converter will start immediately to run to the frequency defined
by S3.00 with acceleration / deceleration time defined by parameters S3.01
and S3.02 no matter the frequency converter is in RUN mode or STOP mode.
See details in the figure below:

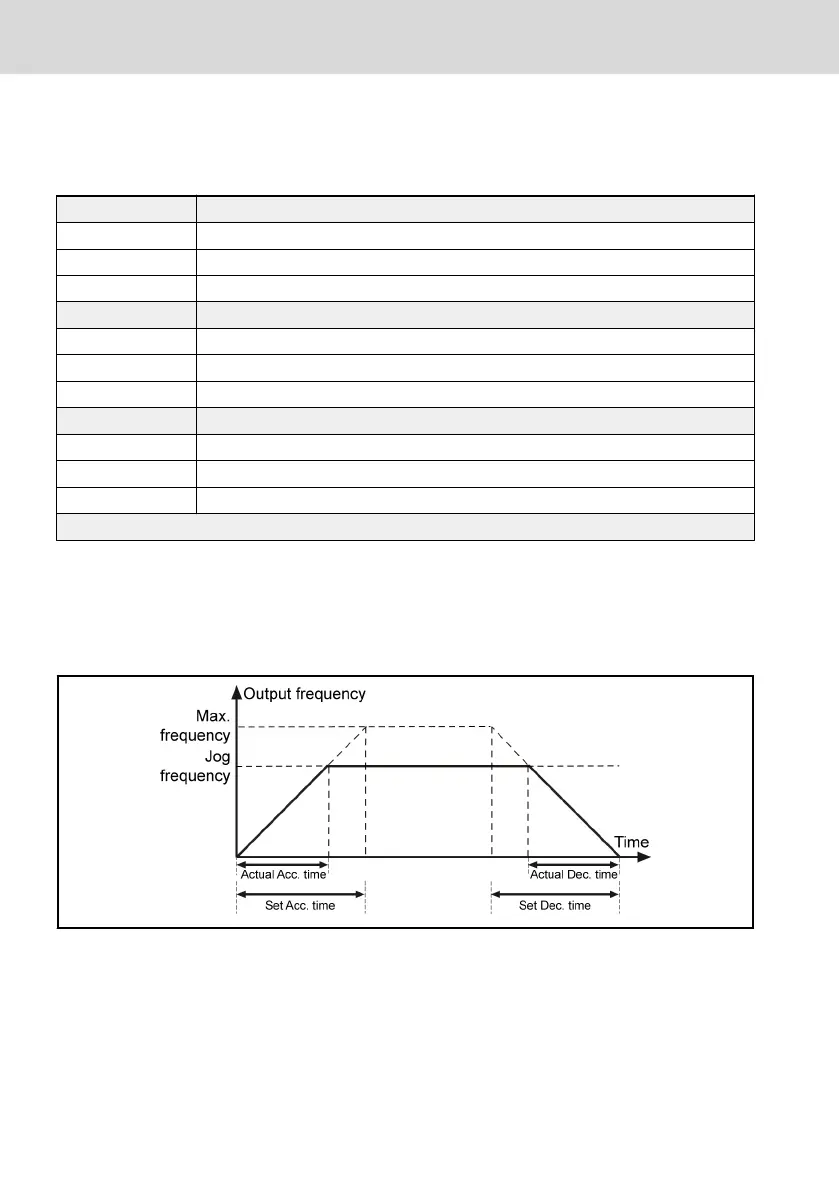

Fig. 8-26: Jogging acceleration / deceleration time
● Jogging command only comes from external terminals or communication.
● When jogging command is activated, the motor runs with predefined frequen-
cy; when the jogging command is inactive, the motor resumes the previous
status.
● If jogging forward and jogging reverse are active at the same time, the fre-
quency converter will STOP; if the jogging forward / reverse command is acti-
Bosch Rexroth AG
Parameter Settings
EFC 3600
82/259
DOK-RCON03-EFC-3600***-IT03-EN-P
