6.4 Menu Structure

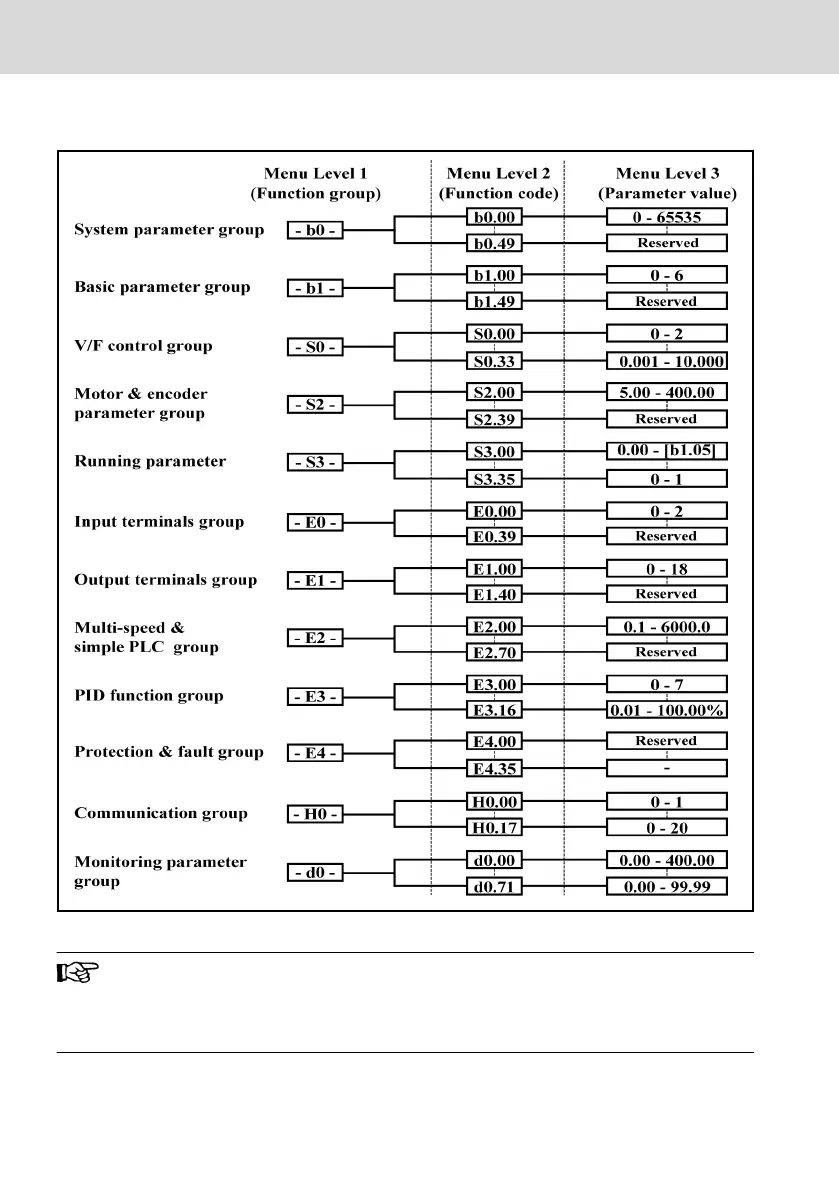

Fig. 6-4: Menu structure
●
The digital operating panel can be used to toggle between menu
options and set parameters with buttons Func, Set, ▲ and ▼.
● The monitoring display mode will be activated if there is no opera-
tion for more than 60 seconds.
