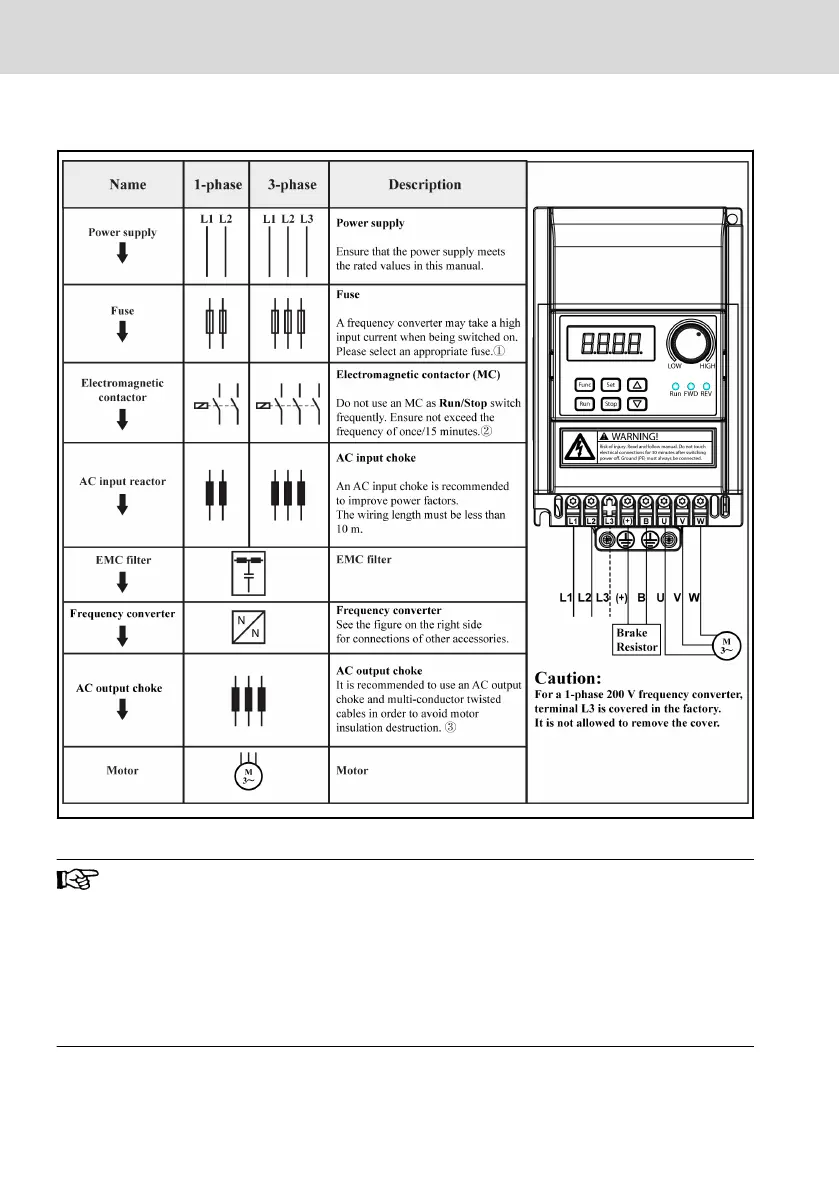

5.6 Main Circuit Wiring Diagram
Fig. 5-6: Main circuit wiring diagram
①
: To select an appropriate fuse, please refer to tab. 5-4 "Fuse and
cable dimensions" on page 29.
②: Excessively frequent starting and stopping will shorten the life
time of relay contacts and DC bus capacitors, and may destroy the
resistor for capacitor charging and current limitation.
③: Whether using an AC output choke or not depends on the factors
of: the length, shielding and distribution capacitance of the motor
cables, as well as the insulation of the motor.
Bosch Rexroth AG
Mounting and Installation
EFC 3600
26/259
DOK-RCON03-EFC-3600***-IT03-EN-P
