5.11 Grounding Screw Removal of Internal EMC Filter
● Step 1: Cut and remove the U-shape area as A indicated in the figure below.
● Step 2: Remove the screw as B indicated in the figure below.

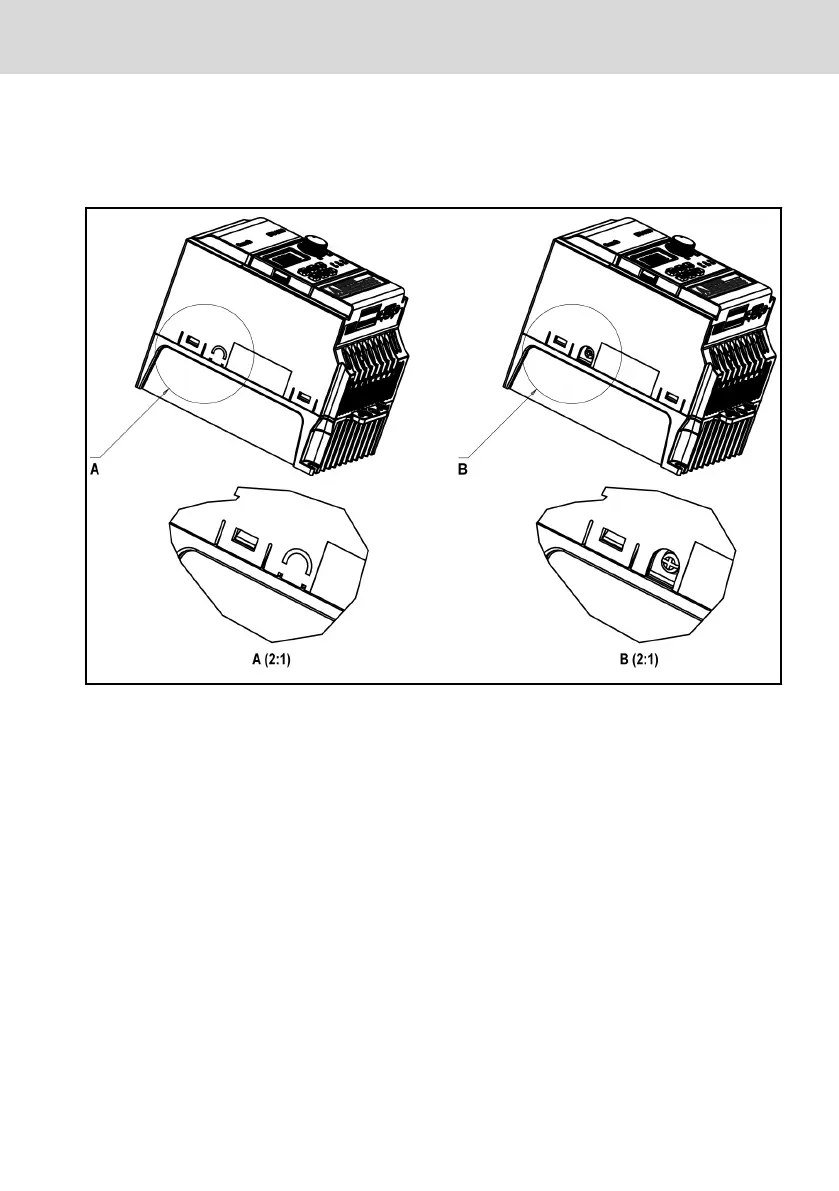

Fig. 5-10: Grounding screw location of internal EMC filter
