5.4 Block Diagram

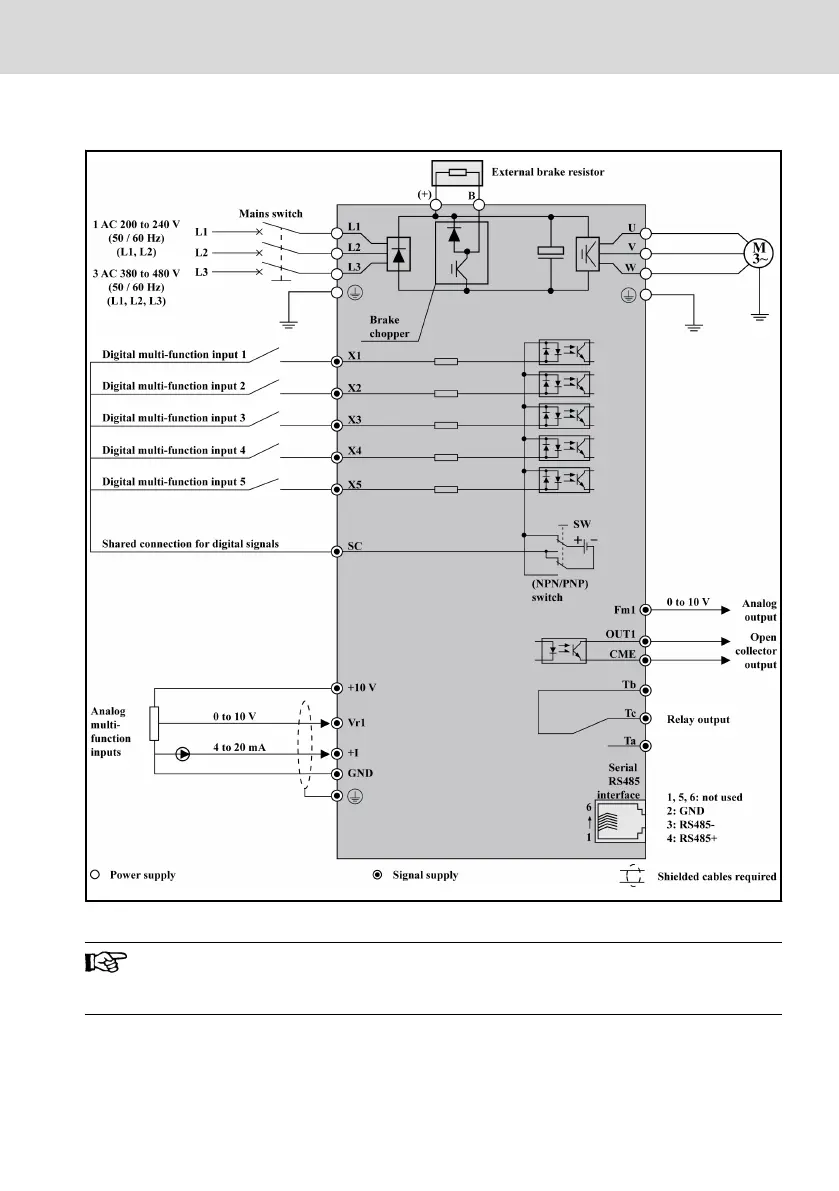

Fig. 5-5: Block diagram
The communication interface shown in the figure above is RJ11 for
ModBus communication; for PROFIBUS communication interface
DB9, see chapter 13.3.3 "PROFIBUS Interface" on page 202.
