REXROTH EFC 3600 - NPN; PNP Switch SW for the Digital Inputs

5.15 NPN / PNP Switch SW for the Digital Inputs

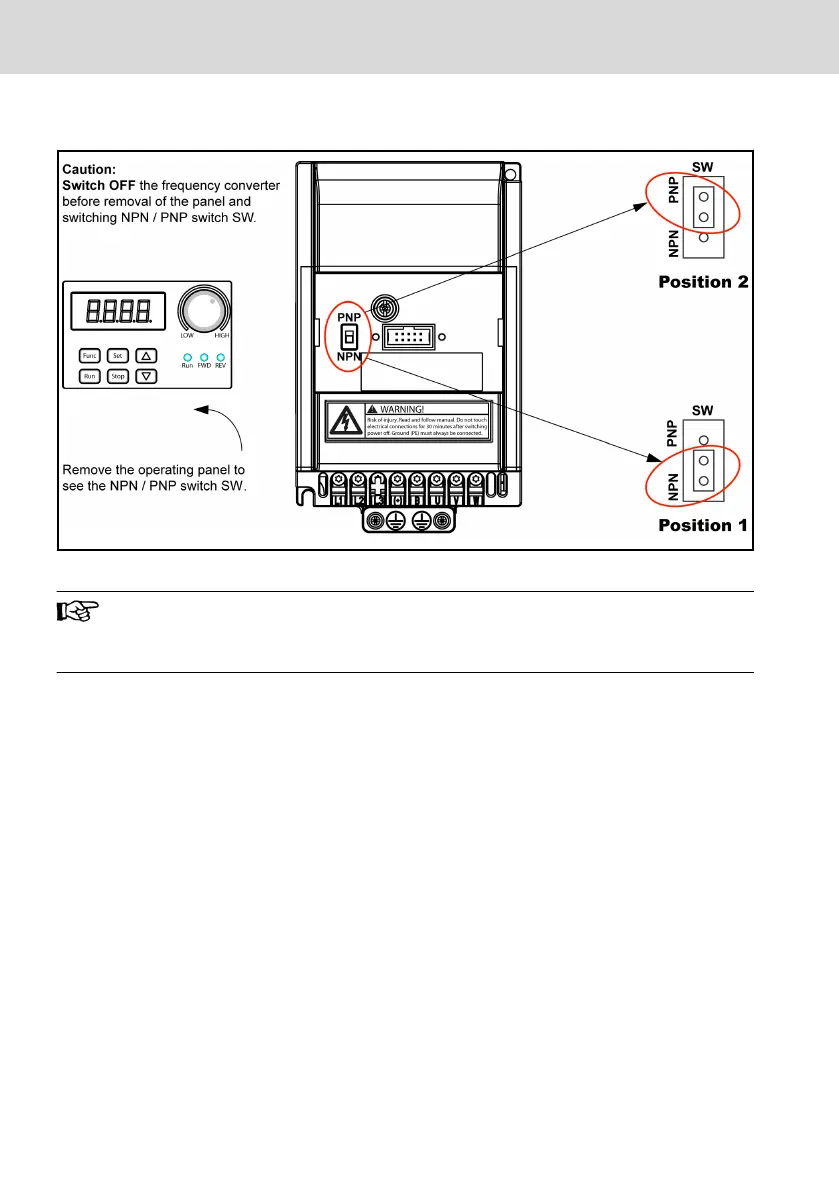

Fig. 5-13: NPN / PNP switch SW for the digital inputs
● The factory default setting of switch SW is NPN.
● For disassembly and mounting of the operating panel, see chapter
14.4 "Operating Panel Removal and Mounting" on page 213.
