5.12 Notes on Control Circuit Wiring
● Terminal GND is the shared terminal for analog signals, and SC is the shared
terminal for digital signals. Do not ground these terminals. Shielded or twis-
ted-pair cables should be used for control circuit terminals wiring and must
be separated from the wiring of main circuit and high current circuit (includ-
ing the control circuit of 200 V relay).
● Please strip the wire insulation for wiring of the control circuit according to
the dimensions given below. Too long stripping may cause short circuit of ad-
jacent wires; too short stripping may lead to wires becoming loose.

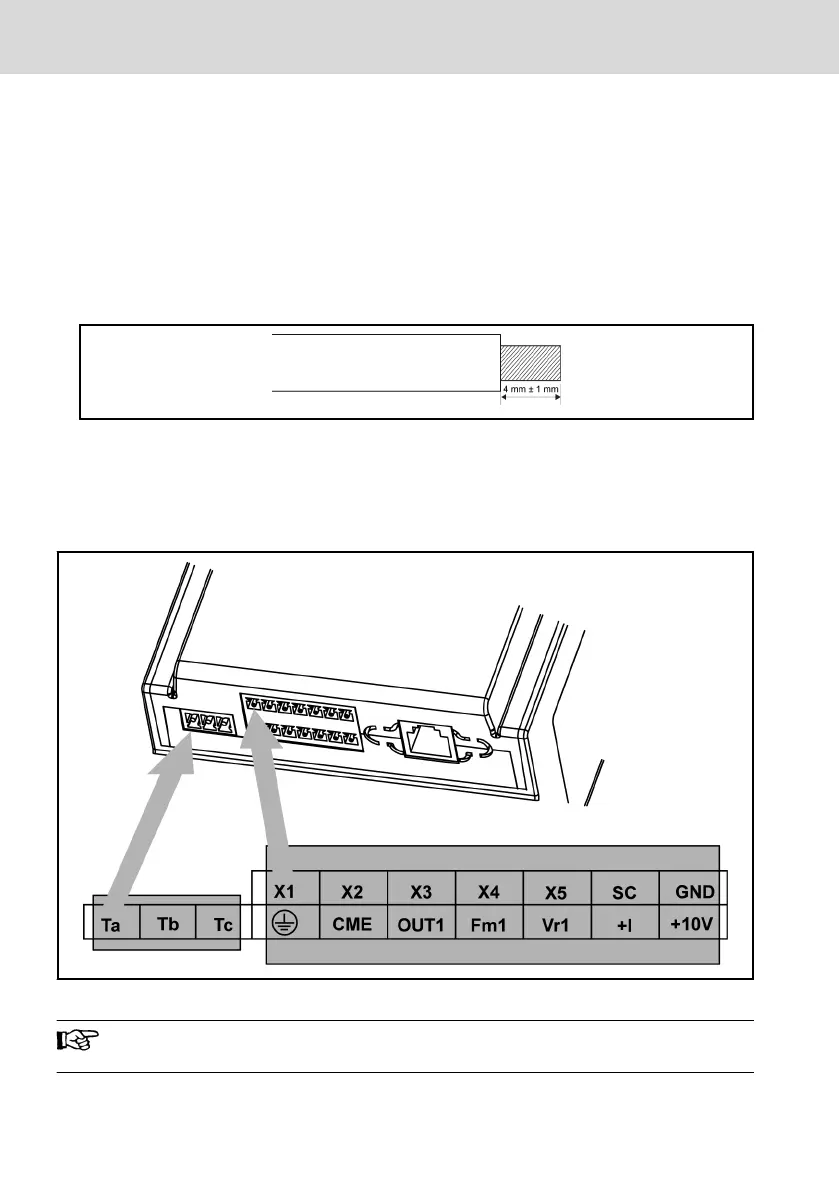

Fig. 5-11: Wire stripping length
● Disconnection of cables or damage of screws may cause incorrect operation
if screws are not fixed correctly.
5.13 Control Circuit Terminals
Fig. 5-12: Control circuit terminals
The sequence of the label and the terminals is as indicated by ar-
rows in the above figure.
Bosch Rexroth AG
Mounting and Installation
EFC 3600
32/259
DOK-RCON03-EFC-3600***-IT03-EN-P
