REXROTH EFC 3600 - Type Coding of EFC 3600 Function Modules

To Next Page

To Previous Page

17.3.2 Type Coding of EFC 3600 Function Modules

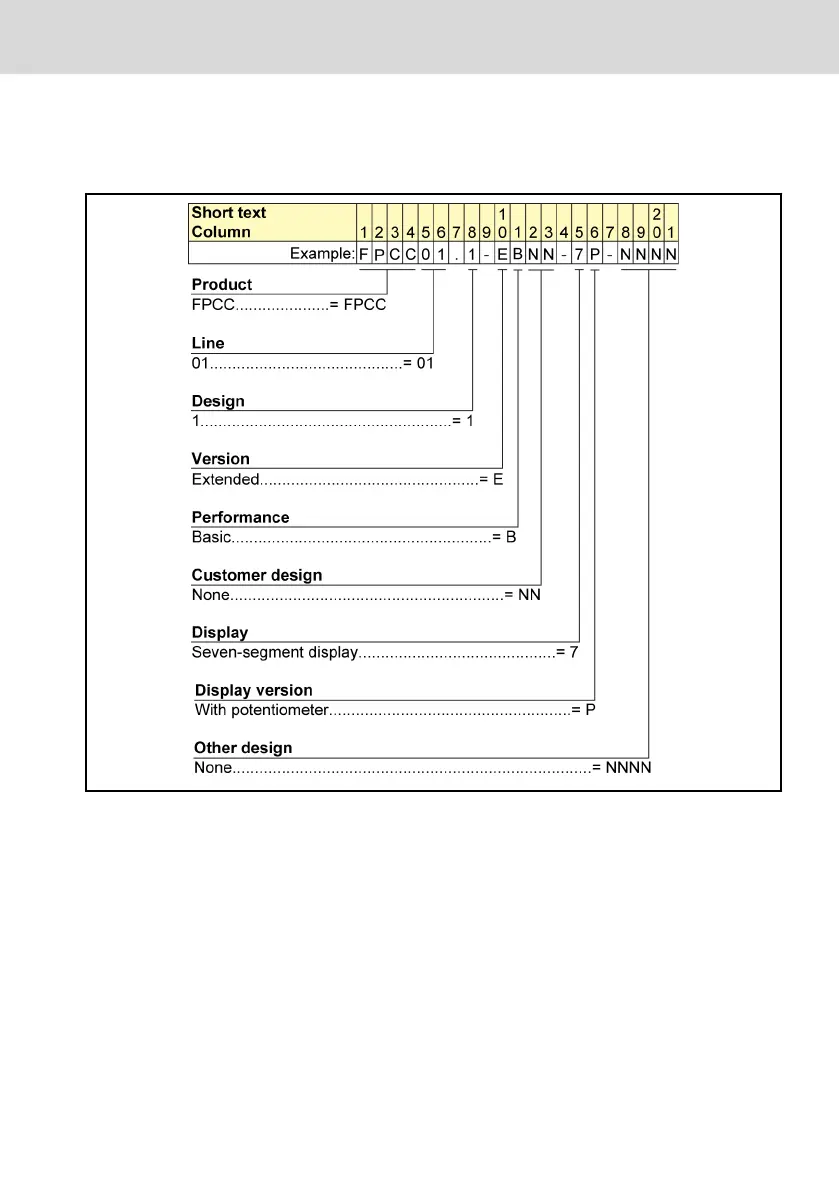

Operating panel type coding

Fig. 17-2: Operating panel type coding

EFC 3600

Bosch Rexroth AG

Appendix

DOK-RCON03-EFC-3600***-IT03-EN-P

243/259
