vated during jogging reverse / forward, the frequency converter will STOP ac-
cording to the setting of “Stopping mode” [b1.40].
8.5.2 Skip Frequency
S3.05 Skip frequency 1
Setting range 0.00 Hz ~ [b1.06]
Minimum unit 0.01 Hz
Factory default 0.00 Hz
S3.06 Skip frequency 2
Setting range 0.00 Hz ~ [b1.06]
Minimum unit 0.01 Hz
Factory default 0.00 Hz
S3.07 Skip frequency 3
Setting range 0.00 Hz ~ [b1.06]
Minimum unit 0.01 Hz
Factory default 0.00 Hz
S3.08 Skip frequency range
Setting range 0.00 ~ 30.00 Hz
Minimum unit 0.01 Hz
Factory default 0.00 Hz
3 skip frequencies can be defined to avoid mechanical resonance. The setting
ranges of the skip frequencies are shown in the figure below:

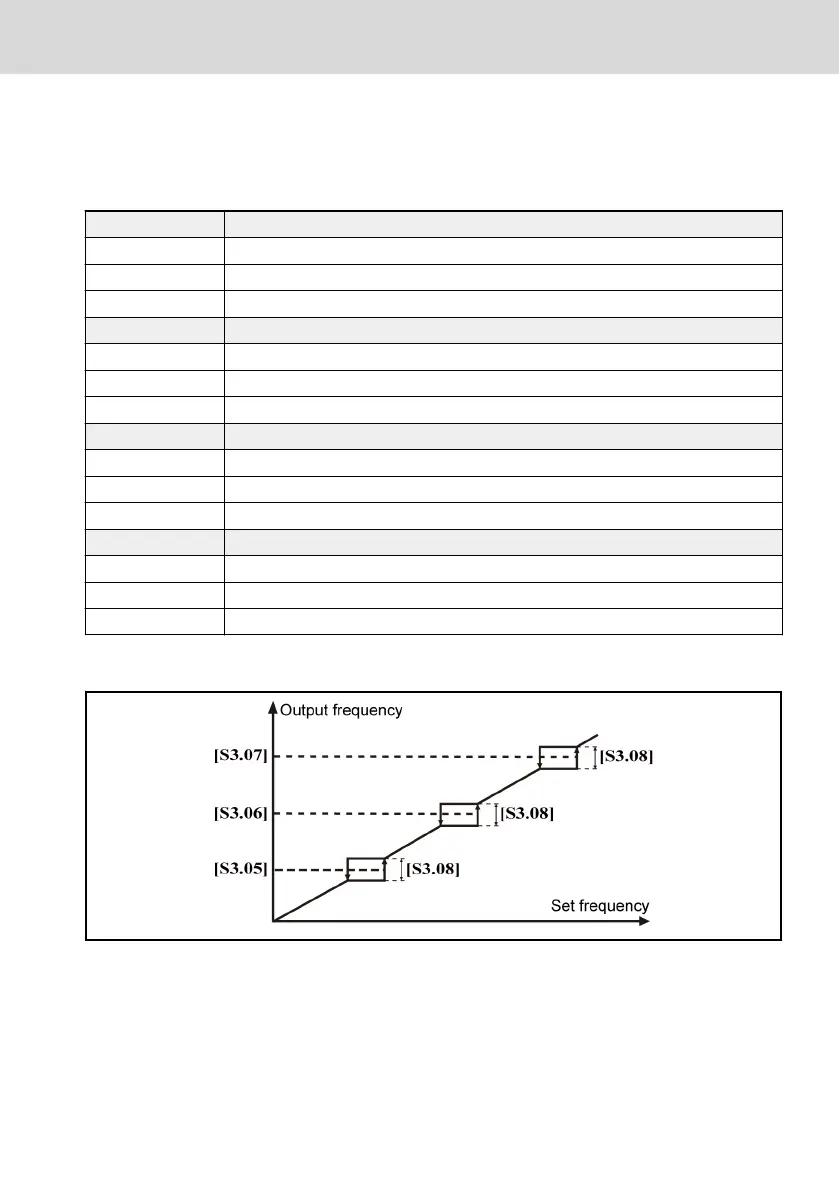

Fig. 8-27: Skip frequencies and ranges
● If the set frequency is in one range and previous output is above this area, the
upper frequency (the skip frequency + skip range/2) is output;
● If the set frequency is in one range and previous output is below this area,
the lower frequency (the skip frequency - skip range/2) is output;
● If the set frequency is in one range and previous output is within this area,
previous output is output.
