5.17 Analog Input Terminals (+10 V, Vr1, GND,+I)

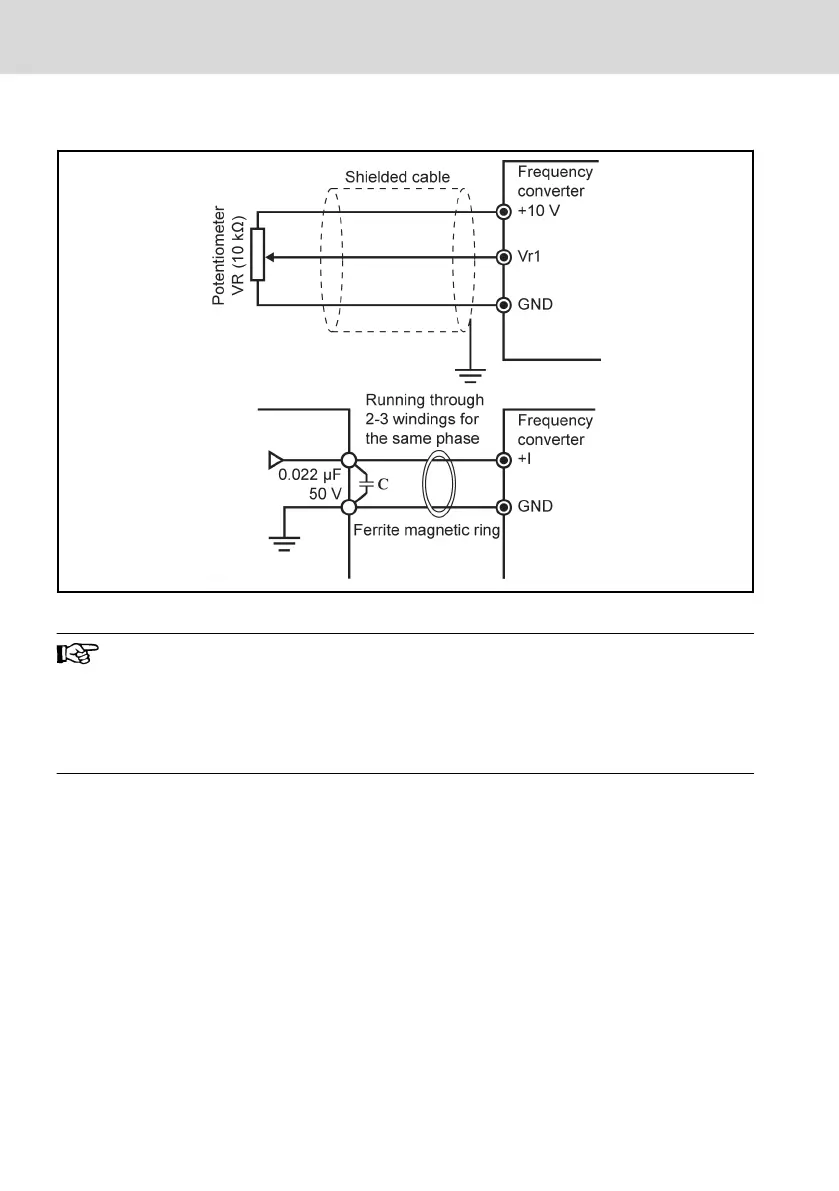

Fig. 5-15: Analog input terminals (+10 V, Vr1, GND,+I)
● For connections of low level analog signals, which are easily affec-
ted by external interference, the wiring length should be as short
as possible (less than 20 m). Shielded cables must be used.
● Incorrect operation may occur due to interference on the analog
signals. In such cases, connect a capacitor and ferrite core at the
output side of the analog signal, as shown above.
5.18 Recommendations on Control Circuit Wiring
0.2 ~ 1.5 mm
2
cables are recommended for wiring of the control circuit.
