10.3.2 Derating and Mains Voltage
Reduced over current based on mains voltage.
The EFC 3600 frequency converters are thermally dimensioned for the rated cur-
rent. This rated current is available with the specified rated voltage. With deviat-
ing voltages in the permissible range, please pay attention to the following:
● U
mains
<U
rated
: With mains voltage below the rated voltage, no higher current
may be withdrawn to ensure that the dissipated power remains.
● U
mains
>U
rated
: With mains voltage above the rated voltage, a reduction of the
permissible output permanent current takes place to compensate for the in-
creased switching losses.

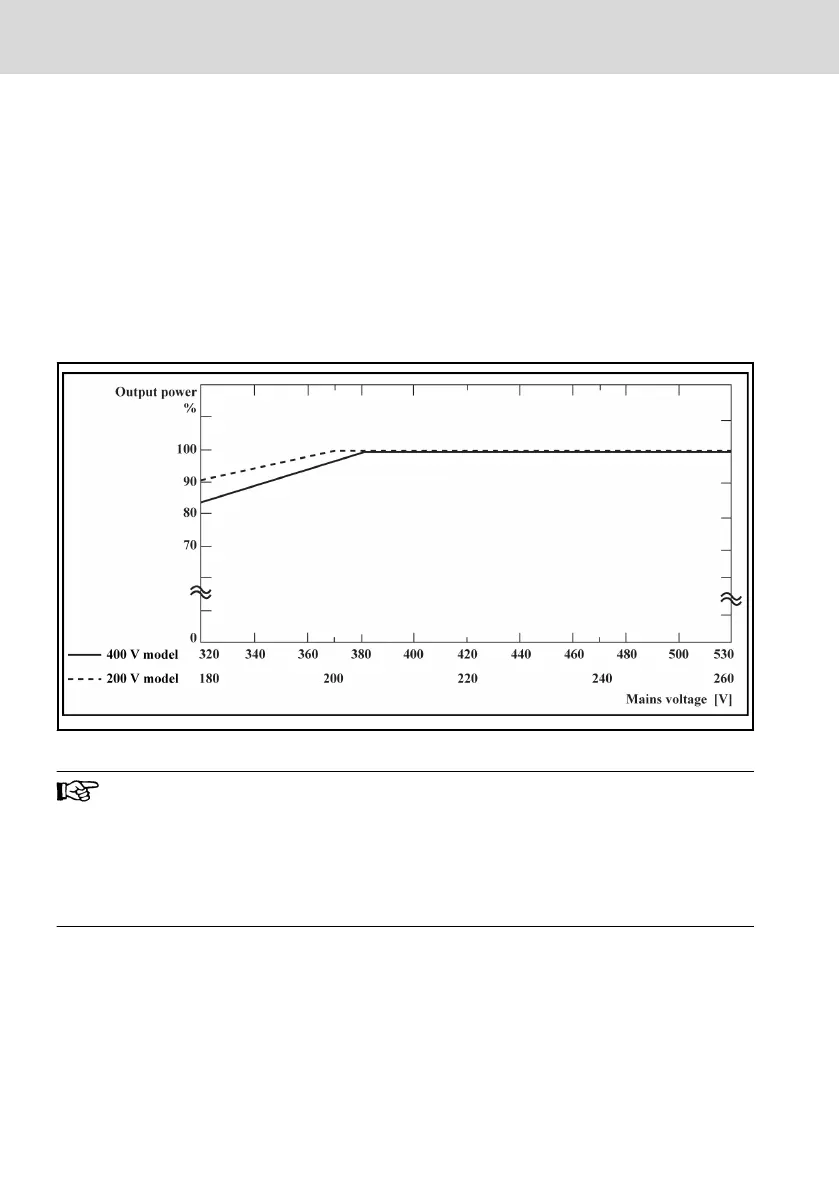

Fig. 10-1: Derating and mains voltage
● 400 V model:
1 % power derating upon every 4 V decreasing when mains volt-
age ＜ 380 V.
● 200 V model:
1 % power derating every 2 V decreasing when mains voltage ＜
200 V.
10.3.3 Derating and Output Current
For the whole power range of EFC 3600 from 0K40 to 4K00, current derating
based on pulse frequency is unnecessary.
