8.6 Group E0: Input Terminal Parameters
8.6.1 Multi-function Digital Input Terminals
E0.00 2-wire / 3-wire running control
Setting range 0 ~ 2
Minimum unit 1
Factory default 0
In order to run the frequency converter with "2-wire / 3-wire running control",
b1.02 / b1.17 needs to be set as 1.
For example: one terminal is assigned as FWD ( [E0.01]=23) and connected to
K1; another terminal is assigned as REV ( [E0.02]=24) and connected to K2.
● [E0.00]=0: Forward / stop, reverse / stop

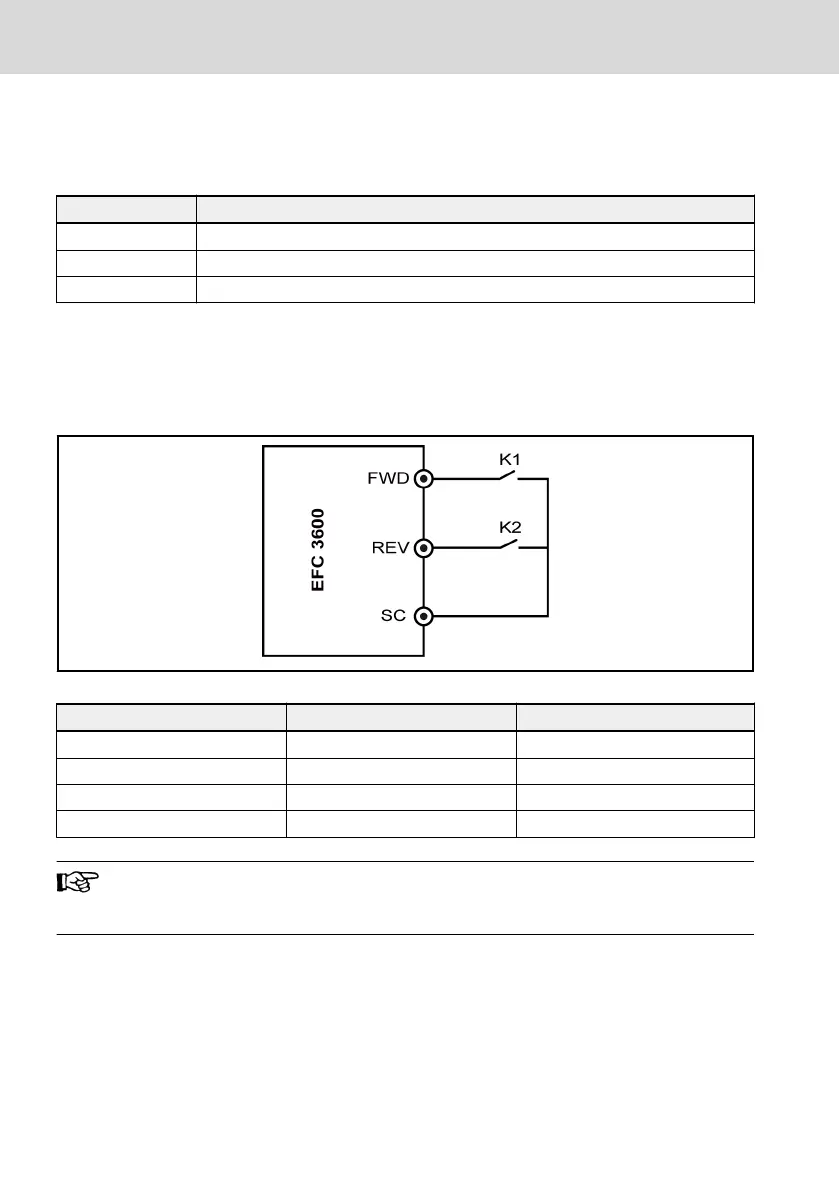

Fig. 8-30: 2-wire control_1
K1 K2 Running status
Inactive Inactive Stop
Inactive Active Reverse
Active Inactive Forward
Active Active Stop
If both terminals are active at the same time, the frequency convert-
er stops according to the stopping mode configured by b1.40 and
both LED indicators (FWD and REV) are switched on.
● [E0.00]=1: Forward / reverse, run / stop
