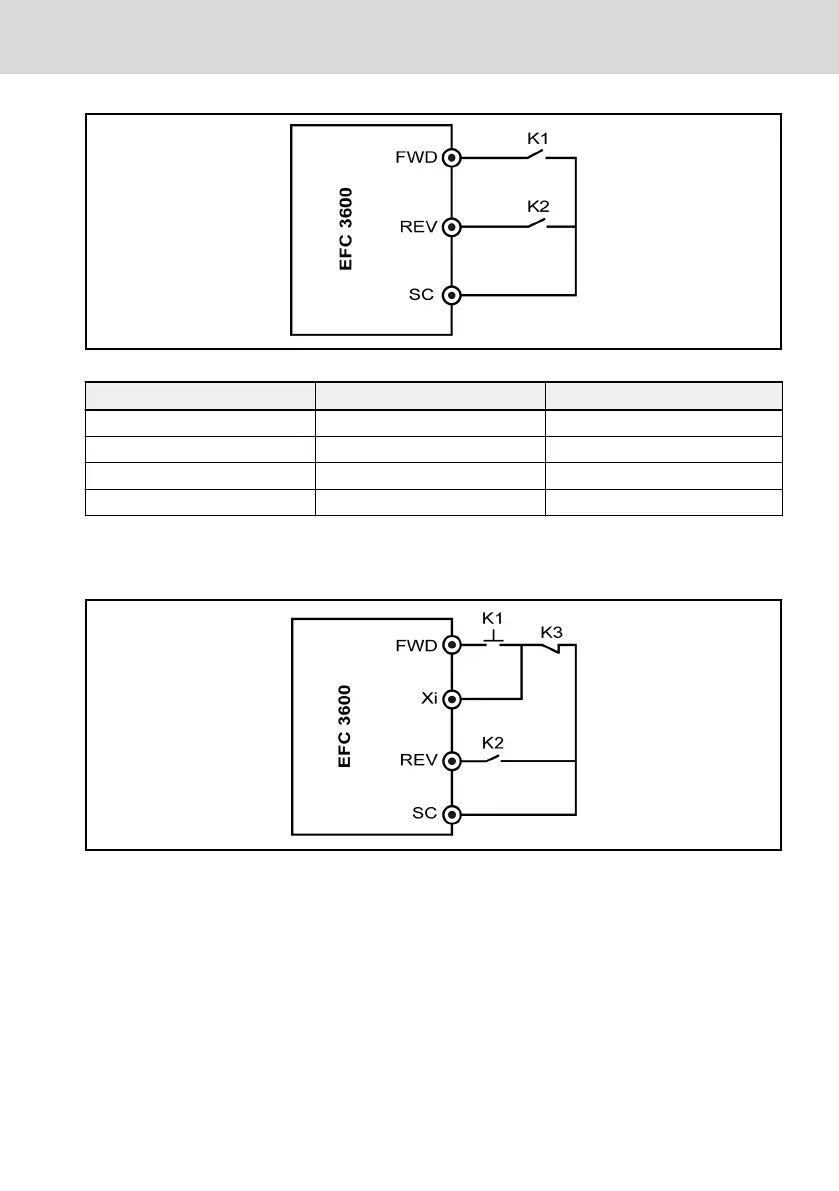

Fig. 8-31: 2-wire control_2
K1 K2 Running status
Inactive Inactive Stop
Inactive Active Stop
Active Inactive Forward
Active Active Reverse
● [E0.00]=2: 3-wire control
An additional terminal needs to be configured as "3-wire running control" and
connected as below:
Fig. 8-32: 3-wire control
●
– K1 is RUN command source
– K2 is used for direction selection
– 0=forward
– 1=reverse
– K3 is STOP command source (3-wire mode N.C. terminal)
– FWD input is edge-sensitive
– REV input is level-sensitive
